Sand Removing Cyclone Separator Sewage Treatment Machine with Video Technical Support

Large Image : Sand Removing Cyclone Separator Sewage Treatment Machine with Video Technical Support

Product Details:

Place of Origin:	China
Brand Name:	BETTER
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,999.00/pieces 1-2 pieces
Packaging Details:	Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator

Contact Now

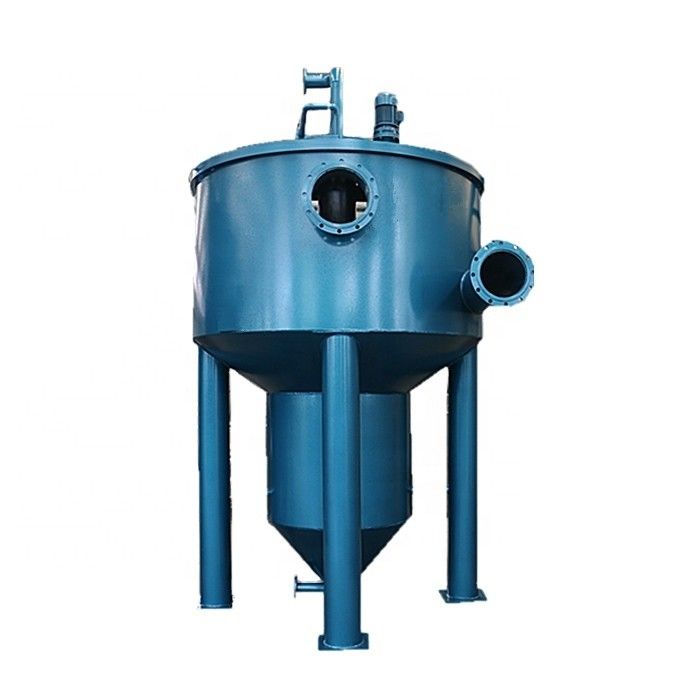

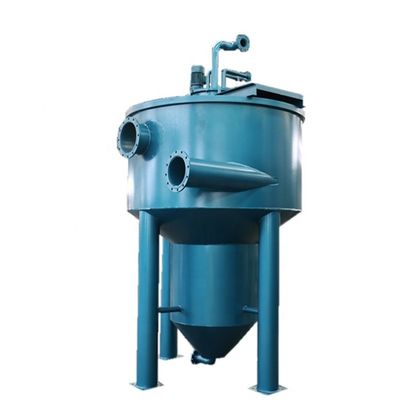

Sand Removing Cyclone Separator Sewage Treatment Machine with Video Technical Support

Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2019
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Pump, Engine, Motor, PLC
Weight:	2000kg	Size:	180*290cm
Power:	0.55kw	Warranty:	1 Year
Capacity:	180-7800 T/hour	Processing:	Pretreatment
Operation:	24 Hours Automatic Running	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support

Hydro cyclone Separators are effective in removing suspended particles from any flow stream of water where the specific gravtity (density) of the particle(s) is heavier than the water it is in; the more significant the difference in the gravity between the water and the particle, the greater the efficiency of the removal process. Depending on the specific gravity of the particle and the viscosity of the flow stream, very small and denser particles can be removed.

Consider a separator's use where any source of water contains contanimants with a weight of 2.6 specific gravity or higher, such as well water to remove sand. Separators are also excellent for use as a pre-removal device for filters with river or ditch water that contain high levels of sand or other large organic debris.

Specification

Model	XSC18	XSC36	XSC600	XSC100	XSC180	XSC300
Capacity	180 t/day	180 t/day	600 t/day	1000 t/day	1800 t/day	3000 t/day
power	0.55 kw	0.55 kw	0.55 kw	0.75 kw	0.75 kw	1.1 kw

Work Principle

Cyclone desander makes use of centrifugal separating to remove sand,as the water inlet pipe is installed at the eccentric of the housing ,when the water flows into the cyclone desander through water inlet pipe,first it flow through the tangent line around the housing to form a flowing obliquely downward.the flowing water will revolve and flow downwards,when the flowing liquid reach the circular cone it will swirl around the axis ,then it flows out of the desander,the imputies and pollutant will fall off from the inside surface onto the sand buket under the action of inertial centrifugal force and its own gravity,there is a structure at the bottom of circular cone to prevent the pollutant to be ascending,when the impurties accumulated in the buket reach the max capacity,just needs to open the manaul butterfly valve,the impurities will flow out of the cyclone desander under the action of flowing water.

Technical Support:
1. English manual book
2. Technical drawing
3. Experienced engineers guide
4. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after installation.
5. Installation: If the project needs our installation guidance, we can send our engineer and translator. The expenses shall be borneby the project owner.

Company Profile

13 Years of Experience
With decades of knowledge in this sector, our water treatment equipment is designed for cater for the specialized requirements of industry and life during the internal waste management processes
BETTER manufactures water treatment equipment for a number of different industries, and we specialize in designing reliable device for the hospital, food, energy and marine industries. Our trained engineers have many years of experience, thus we are able to offer custom-made equipment for a wide variety of sectors with very different needs.

FAQ

1.Q:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing water processing equipment for more than 13years.
2.Q:Where is your factory located? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings according to your requirements.
6. Q: How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
8. Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
12. Q: How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee,
air tickets, accommodation, wages will be paid by buyers.
