Video Outgoing-Inspection Sewage Pretreatment Air Float Machine for Suspended Matter

Name: Video Outgoing-Inspection Sewage Pretreatment Air Float Machine for Suspended Matter
Brand: Shandong Better Environmental Protection Technology Co., Ltd
Price: 2.00 USD
Availability: InStock

All Products

Waste Incinerator Machine
(425)

Dissolved Air Flotation Machine
(277)

MBR Sewage Treatment Equipment
(179)

Sewage Treatment Equipment
(228)

Sludge Dewatering Equipment
(83)

Lamellar Clarifier
(4)

Chlorine Dioxide Generator
(22)

Rotary Drum Filter
(29)

Mechanical Filtration System
(9)

Bridge Sludge Scraper
(1)

Mechanical Bar Screen
(5)

Fertilizer Fermentation Equipment
(17)

Disinfection Device
(5)

Micro Bubble Generator
(12)

Industrial Treatment Equipment
(289)

Certification

I'm Online Chat Now

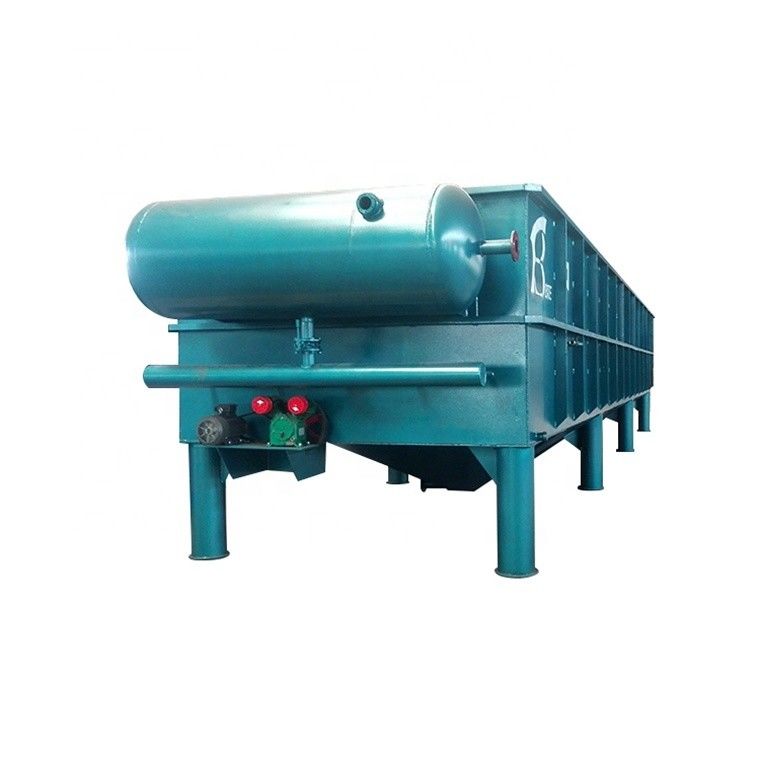

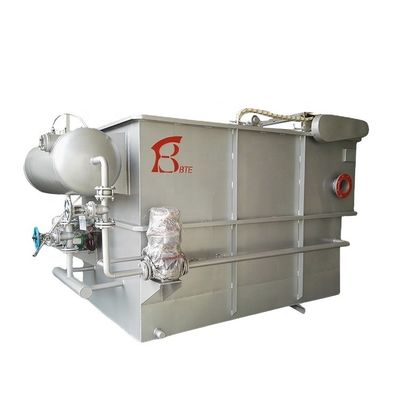

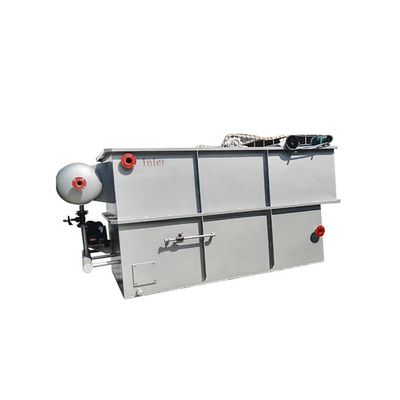

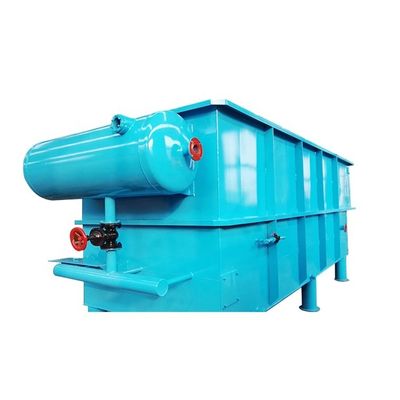

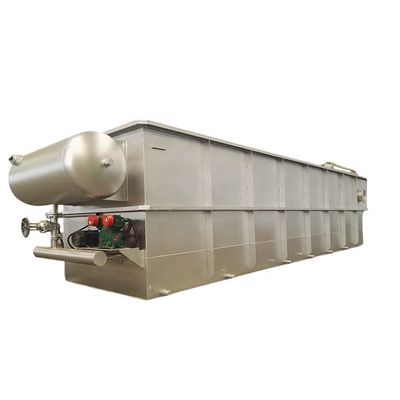

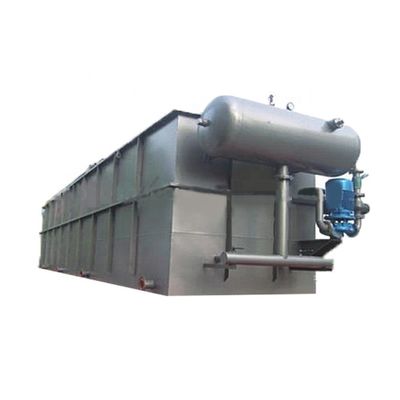

Video Outgoing-Inspection Sewage Pretreatment Air Float Machine for Suspended Matter

Large Image : Video Outgoing-Inspection Sewage Pretreatment Air Float Machine for Suspended Matter

Product Details:

Place of Origin:	Shandong, China
Brand Name:	BETTER
Certification:	CE ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$4,500.00/pieces 2-2 pieces

Contact Now

Video Outgoing-Inspection Sewage Pretreatment Air Float Machine for Suspended Matter

Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Canada, Italy, France, Germany, Viet Nam, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Algeria, South Africa, Japan, Australia	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Pump, Motor, Scraper, Air Compressor, Dissolved Air Tank
Material:	Seaworthy, Stainless Steel /carbon Steel	Weight:	1000kg
Size:	Different As Each Model	Power:	Different As Each Model
Warranty:	1 Year	Productivity:	3000L/Hour
Weight (KG):	1000 Kg	Type:	Pure Water Treatment System
After Warranty Service:	Video Technical Support\Online Support\Spare Parts	Advantage:	24 Hours Automatic Running
Key Words:	Sewage Treatment System	Color:	Customized Colors
Voltage:	380V /Customized	Use:	Water Treatment Technologies
Shape:	Rectangle Shape

Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>

Product Description

Structure

1.Air dissolving system

(Dissolved air pump

Air compressor

Dissolved air tank

Release)

2.Air flotation tank

3.Scraping system

(Foam scraper reducer

Chain

Scraping board)

Model	Capacity	Air water amount(m³/h)	Air pump(kw)	Foam scraper power(kw)	Air compressor power(kw)	Air tank size(mm)	Dimension(mm)
YW-5	4-5	1.5-2	3	0.55	1.5	400×1000	3300×1800×2200
YW-10	8-10	2-3	4	0.55	1.5	500×1512	4000×2100×2200
YW-15	10-15	4-6	7.5	0.55	1.5	500×1512	4400×2100×2200
YW-20	15-20	5-7	7.5	0.55	1.5	500×1512	4600×2400×2200
YW-30	20-30	6-10	7.5	0.75	1.5	500×1512	5200×2600×2400
YW-40	30-40	8-13	7.5	0.75	1.5	600×1880	6000×2600×2400
YW-50	40-50	15-20	7.5	0.75	2.2	600×1880	7000×2600×2400
YW-60	50-60	18-27	11	0.75	2.2	600×1880	7600×2800×2400
YW-70	60-70	22-30	11	0.75	2.2	650×2034	8400×2800×2400
YW-80	70-80	24-32	11	1.1	2.2	650×2034	9200×2800×2400
YW-100	90-100	30-35	15	1.1	3	700×1980	10000×2800×2600
YW-150	125-150	60-80	22	1.1	4	800×1980	13500×2800×2600
YW-200	175-200	80-100	30	1.1	5.5	800×2100	15800×2800×2600
YW-250	225-250	110-120	37	1.1	5.5	800×2400	18000×2800×2600
YW-300	280-300	120-180	37	1.1	5.5	1000×2900	19200×3400×2800
