Motor Core Components 2024 Reclaimed Water MBR Sewage Treatment Integrated Equipment

Name: Motor Core Components 2024 Reclaimed Water MBR Sewage Treatment Integrated Equipment
Brand: BETTER
SKU: BETTER
Price: 6 USD
Availability: InStock
Rating: 5 (133 reviews)

All Products

Waste Incinerator Machine
(425)

Dissolved Air Flotation Machine
(277)

MBR Sewage Treatment Equipment
(179)

Sewage Treatment Equipment
(228)

Sludge Dewatering Equipment
(83)

Lamellar Clarifier
(4)

Chlorine Dioxide Generator
(22)

Rotary Drum Filter
(29)

Mechanical Filtration System
(9)

Bridge Sludge Scraper
(1)

Mechanical Bar Screen
(5)

Fertilizer Fermentation Equipment
(17)

Disinfection Device
(5)

Micro Bubble Generator
(12)

Industrial Treatment Equipment
(289)

Certification

I'm Online Chat Now

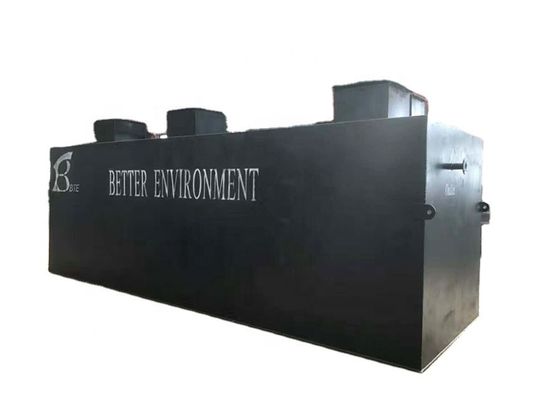

Motor Core Components 2024 Reclaimed Water MBR Sewage Treatment Integrated Equipment

Large Image : Motor Core Components 2024 Reclaimed Water MBR Sewage Treatment Integrated Equipment

Product Details:

Place of Origin:	Shandong, China
Brand Name:	BETTER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,599.00/pieces 4-4 pieces

Contact Now

Motor Core Components 2024 Reclaimed Water MBR Sewage Treatment Integrated Equipment

Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Canada, Turkey, Italy, France, Germany, Viet Nam, Brazil, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Colombia, Romania, Australia	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Pump, Motor, Air Blower
Material:	Seaworthy Packing, Stainless Steel/Carbon Steel	Weight:	1000KG
Size:	Different As Each Model	Power:	Different As Each Model
Warranty:	1 Year	Productivity:	2000L/Hour
Weight (KG):	1000 Kg	Product Name:	Water Treatment Equipment
Function:	Producing Fresh Water	Type:	Underground
Color:	Customized Color	After-sales Service Provided:	1 Year Warrantry
Feature:	Eco-Friendly Easy Operation	Other Name:	STP
Shape:	Rectangle	Use:	Water Treatment Technologies

Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>

Product Description

I .What is the MBR
Membrane Bioreactor (MBR) is a kind of advanced technology developed since the end of 20th century which realized the efficient combination of membrane separation technology with biological technology. The membrane separation technology replaces the traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be zero. Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it can be reused without the third level treatment. Due to the high security and economic and effective water, it greatly expands the scope of application of waste water recycling.

2. Technological Process
Sewage → Grille → Regulating pond → MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet water SS <1mg/L.
4. Membrane area: 8m2, advised gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.

Model	WSZ 0.5	WSZ 5	WSZ 20	WSZ 30
Capacity(m3/h)	0.5	5	20	30
Inlet water BOD5(mg/L)	150~400
Outlet water BOD5(mg/L)	20~60
Floor space(m2)	4.5	15	51	76

4.Features:
1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.

2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading.Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.

3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage,greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.

4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.

5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.

6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple. The module design make the machine flexible, it is easy to expand the volume.

3.Scope Of Application

1) The standard and quantity of sewage upgrading and reconstruction project are raised.

2) New sewage treatment project MBBR, fluidized bed and biofilter process.

3) Reclaimed water reuse and biochemical treatment.

4) Nitrogen and phosphorus removal in river regulation.

5) Aquaculture to remove ammonia nitrogen, purification of water quality.
