Horizontal Vacuum Belt Filter for Wastewater Sludge Treatment in Energy Mining Sector

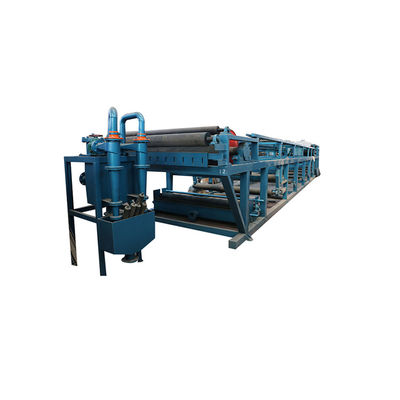

Large Image : Horizontal Vacuum Belt Filter for Wastewater Sludge Treatment in Energy Mining Sector

Product Details:

Place of Origin:	Shandong, China
Brand Name:	BETTER

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,980.00/sets 1-1 sets
Packaging Details:	Seaworthy package
Supply Ability:	30 Set/Sets per Month

Contact Now

Horizontal Vacuum Belt Filter for Wastewater Sludge Treatment in Energy Mining Sector

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Egypt
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Warranty Of Core Components:	1 Year
Core Components:	Engine, Motor	Material:	SS/CS, Carbon Steel/SUS
Weight:	3T	Size:	6*10M
Power:	7.5KW	Warranty:	1 Year
Productivity:	500L/Hour	Weight (KG):	3000 Kg
Delivery Time:	Within 25 Days	Packing:	Seaworthy Package
Payment:	L/C Or T/T

Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>

Product Description

Description:
DU rubber vacuum belt filter press is a high efficient solid-liquid separation device absorbed advanced technology at home and abroad. It has a fixed vacuum box where tape slides on to form a sealing structure and solid-liquid is separated under vacuum sub pressure. Filter area is able to auto-filter, wash cake, discharge sludge, regenerate cloth and collect mother liquor and washing liquor in section.

It features high efficiency, large productivity, low water-content of cake, simple operation and easy maintenance. After years of improvement, its technology achieved the international advanced level and is widely used in solid-liquid separation for metallurgy, mining, chemical engineering, paper mill, food, pharmaceutical, coal washing, environmental protection industries, especially for calcium sulfate dewatering in FGD.

Features
1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.
3. Fast filter speed: large particles will settle at the lower layer while small particles upper layer when material goes through sedimentation area. Reasonable structure of filter cake ensures low resistance of liquid for fast filter of thin layer.
4. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
5. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.
6. DSC for control system ensures site control and remote control automatically.

Flow Process Diagram

A. Feeding device B. Spraying device C. Adjusting device D. Washing device
E. Air-liquid separator F. Reflux pump G. Vacuum pump H. Rubber belt
I. Filter cloth J. Vacuum box K. Friction belt

Vacuum Box and Lifting Device

Vacuum box is connected by section as a whole and each section is connected with liquid collection pipe to form a vacuum liquid collection system. There is also a lifting device for easy change of friction belt.

Adjusting Device and Tightening Device
Auto-adjustment of cloth by cylinder or gasbag is used for normal operation.
Tightening device works through screws for sufficient friction to avoid deviation.

Washing Device
Water jet for cloth and belt washing and sealed vacuum box for site cleaning, head is from US spraying system Co. for better performance.
Counter current type and shower device offers two choices as advection or counter current decantation for different materials so as to wash completely.

Control System

Remote and field control is convenient for unattended operation.

Sideway of Belt and Shutter
Four-layer EP200 polyester fabric for loop rubber band and composite structure for sideway, that is, wave sideway is connected with parallel tape ensures elasticity so as to avoid fraction of sideway and outflow of liquor when it goes through the roller. At the top of rubber band is a row of groove with vacuum discharging hole on it, pure rubber layer for discharging hole part can prevent liquid flows into rubber tape through cloth thus greatly improves its life time.

Technical parameter

Model	Filter area (m2)	Filter length (mm)	Main motor power( kw)	Vacuum consumption(m3/min)	Vacuum box power(kw)
400	1.0	2500	3	2	1.1
630	5.0	7900	3	15	30
630		6.3	10000	3	15	30
1300	7.3	5600	5.5	15	30
		9.1	7000	5.5	20	37
		10.9	8400	5.5	20	37
		15.0	11200	5.5	20	37
		18.2	14000	7.5	30	45
		20.0	15400	7.5	30	45
1800	20.0	11200	7.5	30	45
		25.0	14000	11	42	55
		30.0	16800	11	42	55
2000	20.0	10000	11	42	55
		25.0	12500	11	42	55
		29.0	14000	11	42	55
		33.6	16800	11	66	55
		39.2	19600	15	66	75
2500	25.0	10000	11	30	55
		30.0	12000	11	42	55
		35.0	14000	15	42	75
		42.0	16800	22	86	110
		49.0	19600	22	86	110
		56.0	22400	30	97	160
3150	61.7	19600	30	100
		70.6	22400	30	123
		79.4	25200	30	141
