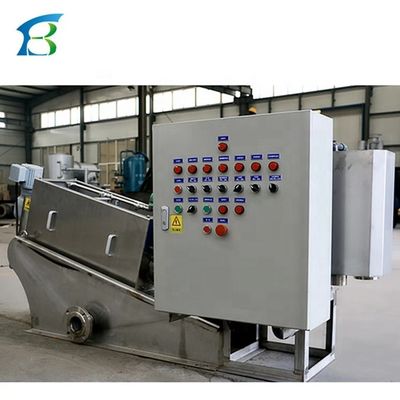

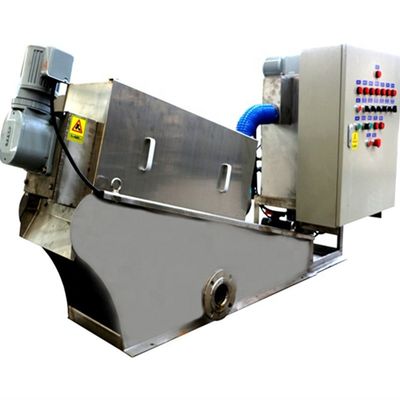

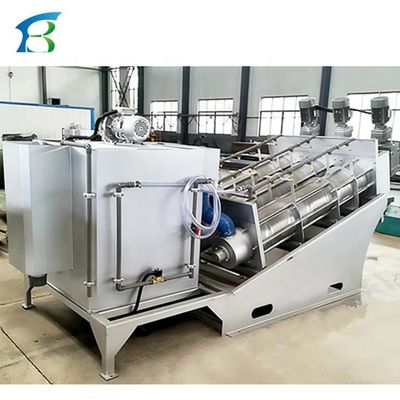

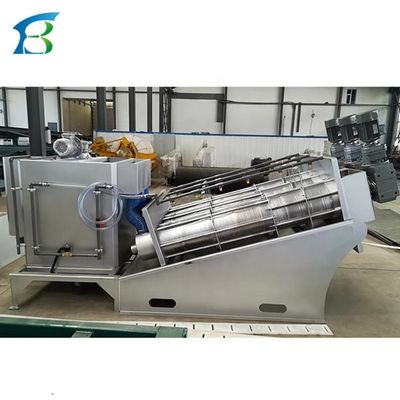

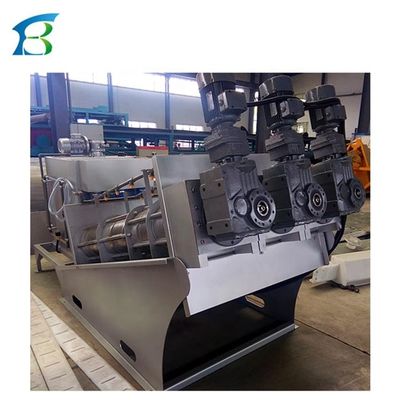

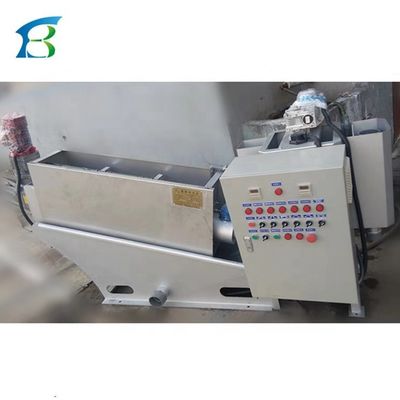

Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box

Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box

Large Image :  Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Certification: ISO9001,
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,500.00/sets 1-1 sets
Packaging Details: Standard Exportation Seaworthy Packing
Supply Ability: 1000 Set/Sets per Year
Contact Now

Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: Gearbox, Pump, Gear
Material: Ss/cs, Carbon Steel/Stainless Steel Weight: 194-5230 Kgs
Size: L1816*W750*H1040-L4600*W2250*H1960 Power: 0.35-8.2 KW
Warranty: 1 Year Productivity: Other
Weight (KG): 3000 Kg Product Name: Volute Sludge Dewatering Machine
Voltage: 220V/ 380V Color: Customized
Control: Automatic Control Box MOQ: 1 Set
Function: Sludge Dewatering Port: Qingdao

Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 0
Product Description
Model
Dimensions(L*W*H mm)
Power(kw)
Weight(kg)
BEA-131
1816*750*1040
0.35
194
BEA-132
2065*900*1040
0.45
275
BEA-201
2500*680*1450
0.74
380
BEA-202
2500*930*1450
1.1
470
BEA-301
3200*970*1790
0.92
820
BEA-302
3600*1200*1790
1.65
1350
BEA-303
3850*1600*1790
2.2
1820
BEA-351
4000*750*2000
1.3
950
BEA-352
4200*1200*2000
2.25
1300
BEA-353
4350*1700*2000
3.35
1680
BEA-401
4200*850*2100
2.05
1270
BEA-402
4350*1450*2100
3.75
2350

Product Characteristic:

1.Non-clogging design, 24h running automatically.
2.Self-cleaning, little rinsing water.
3.Low-concentrated sludge handling.
4.Energy saving. Saving power, 1/20 of centrifugal.Saving water, 1/8 of belt press.
5.All-in-one design, save construction cost.
6.Low maintenance cost.
7.Low noise and little vibration.
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 1
Working principle:
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades. Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and began to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 2

Product Description:

The main body ofScrew Press Separator For Sludge Dewatering consists of both thicken stage and dewatering stage. The screw axis is inside the middle of the machine, the thicken and dewatering stage are formed by fixed ring and moving ring respectivey, equipped with automatic cleaning system. When dewatering, the moving ring will clean the gap timely under the impelling of screw axis, to avoid blocking; and meantime save cleaninf water and largely guarantee of continuously and stable of plant operation

Volute Sludge Dewatering Machine belongs to the screw press, it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. it using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
The main body of volute sludge dewatering machine consists of both thicken stage and dewatering stage. The screw axis is inside the middle of the machine, the thicken and dewatering stage are formed by fixed ring and moving ring respectivey, equipped with automatic cleaning system. When dewatering, the moving ring will clean the gap timely under the impelling of screw axis, to avoid blocking; and meantime save cleaninf water and largely guarantee of continuously and stable of plant operation.
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 3
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 4
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 5
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 6
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 7



Application

1.It can be used for slaughtering sludge dewatering treatment.


2.It also suitble for paper mill, textile, slaughter, food, starch, chemicals etc.

  • Characteristics


1. low power consumption

2. large handling capacity

3. save cleaning water

4. continuous and stable operation
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 8
After Sales Service
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 9


Your satisfaction is always our utmost pursuit!

1.Online support

2.Field installation

3.Commissioning and training

4.Field maintenance and repair service

5.Video technical support
Water Treatment 1 Presse A Vis Plant Dehydrator Screw Press with Automatic Control Box 10
