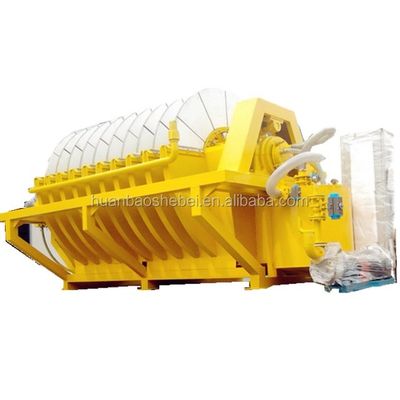

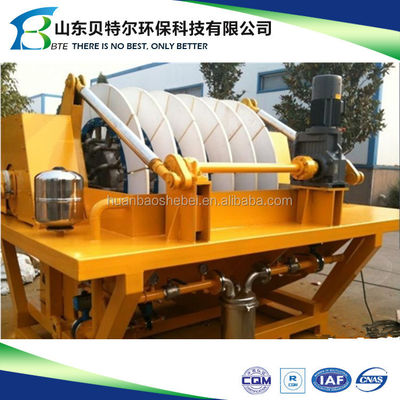

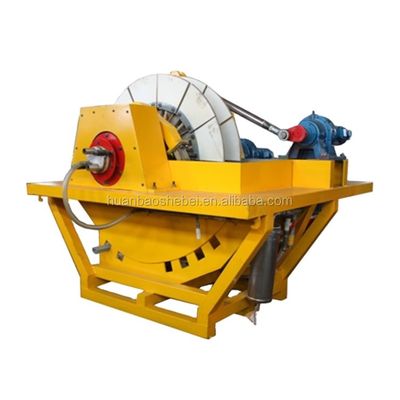

1-30tons/h Ceramic Disc Vacuum Filter for Mining Dewatering After-sales Service Provided

Large Image : 1-30tons/h Ceramic Disc Vacuum Filter for Mining Dewatering After-sales Service Provided

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Better

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,500.00/sets 1-1 sets
Packaging Details:	Container/ per required..
Supply Ability:	30 Set/Sets per Month ceramic filter

Contact Now

1-30tons/h Ceramic Disc Vacuum Filter for Mining Dewatering After-sales Service Provided

Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, South Africa, Kazakhstan, Uk	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material:	SS/CS, Ceramic+Q235/ 304SS/ 316SS	Weight:	500KG
Size:	682032002500MM	Power:	7.5KW
Warranty:	1 Year	Productivity:	1000L/Hour
Weight (KG):	500 Kg	After-sales Service Provided1:	Video Technical Support
After-sales Service Provided2:	Free Spare Parts	After-sales Service Provided3:	Online Support
Capacity:	1-30tons/hqa	Filtration Area:	1-60m2
Vacuum:	Yes

Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>

Product Description

Ceramic Disc Type Filter,
used in Mineral Tailings Filtration
(Export experience to Korea, USA, high quality)

Product Overview
Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate. The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.

Working Principle
Ceramic filter shape and mechanism is similar with the working principle of vacuum belt filter, under the effect of pressure
difference, suspended matter particle are intercepted on the medium surface then form as filter cake while liquid outflow from filter medium to realize solid-liquid separation. The difference is filter medium, ceramic filter plate is with micropore that can produce wicking effect. That makes the wicking effect stronger than vacuum force, and micropore keep a state full of liquid.

In any case, ceramic filter plate don't allow air go through, because of this reason, while solid-liquid separating, energy is saving and vacuum degree is high. Ceramic filter mainly consists of rotor, stirrer, scraper components, slurry trough, distributor, ceramic filter plate, vacuum system, cleaning system, automaticcontrol system etc.

Main Structure
Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Trough body uses corrosion resistant stainless steel, can load ore pulp. Stirring system is stirring mixing materials in trough body to avoid the rapid subsidence of materials. Ceramic filter plate is installed on roller, roller can be rotated by the drive of stepless speed change reduction gears.

Filter medium of ceramic filter is ceramic filter plate, doesn’t need filter cloth, that reduces cost of production. The 1mm gap between scraper and filter plate prolongs the service life while discharging.

Using back washing and united cleaning etc. methods, full-automatic control by PLC, equipped with inverter, liquid level meter etc. device. While starting up, ore pulp valve is monitored by level meter, it controls height of ore pulp level. When to high level, PLC control system rapidly opens filtrate pump outlet valve to drain water quickly. Ceramic can use long-range control or centralized control according to different requirement by customers..

Main Products

Project Case

Certifications

Company Profile

Product Process

Packing&Shipping

CONTACT US!!!

WIN-WIN COOPERATION

Contact Details

Shandong Better Environmental Protection Technology Co., Ltd

Contact Person: Ms. Christine Zhu

Tel: +8613356363253
