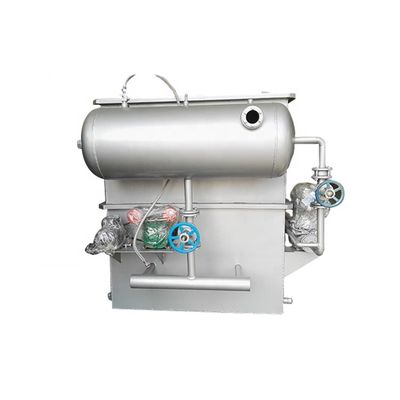

Sedimentation And Treatment Equipment With Dissolved Air Flotation Device

Sedimentation And Treatment Equipment With Dissolved Air Flotation Device
Sedimentation And Treatment Equipment With Dissolved Air Flotation Device Sedimentation And Treatment Equipment With Dissolved Air Flotation Device Sedimentation And Treatment Equipment With Dissolved Air Flotation Device Sedimentation And Treatment Equipment With Dissolved Air Flotation Device Sedimentation And Treatment Equipment With Dissolved Air Flotation Device Sedimentation And Treatment Equipment With Dissolved Air Flotation Device

Large Image :  Sedimentation And Treatment Equipment With Dissolved Air Flotation Device

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Certification: ISO9001;BV;National patent
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $69,999.00/sets >=1 sets
Packaging Details: knock-down package, steel frame package, steel frame with three layers plywood package, wooden box, pallet, neutral packing, export standard package according to customer's requirements.
Supply Ability: 50 Set/Sets per Month
Contact Now

Sedimentation And Treatment Equipment With Dissolved Air Flotation Device

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2022
Warranty Of Core Components: 1 Year Core Components: Pump, Motor
Warranty: 1 Year Productivity: Other
Weight (KG): 1000 Kg Material: Carbon Steel/SUS
TSS Removal Rate: >90% COD Removal Rate: >30%
After Warranty Service1: Video Technical Support After Warranty Service2: Field Maintenance And Repair Service
After-sales Service Provided1: Video Technical Support After-sales Service Provided2: Free Spare Parts
After-sales Service Provided3: Online Support Port: QINGDAO



Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 0

1. Description

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.

Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

2. Application

(1) Remove oil and TSS.

(2) Separate small particles and algae in groundwater.

(3) Recover valuable products in industrial sewage such as paper pulp.

(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

3. Features

(1) Large capacity, high efficiency and small occupying space.

(2) Compact structure, easy operation and maintenance.

(3) Silt expansion elimination.

(5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.

(6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.

Suitable area:

slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,

leather and tannery, petrochemical industry, domestic wastewater, etc.

4. Flow Process Diagram

Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 1

1. Clear water reservoir  2. Clear water pump  3. Control valve   4.5. Pressure gage  6. Dissolved gas tank



7. Control valve   8. Air compressor   9. Releaser   10. Foam scraper  11. Air floating pond 12. Water collector



13. Jet device 14. Control valve  15. Dosing tank  16. Sewage pump   17. Flow meter   18. Sewage pond



5. Technical Parameter

Specification

Capacity

(m3/h)

Dissolved

gas water

(m3/h)

Main

dynamo

 power (kw)

Foam

scraper

power(kw)

Air

compressor

power(kw)

Dissolved air

 tank size

(mm)

Overall dimension

  (mm)

YW-5

2-5

1.5-2

3

0.55

1.5

Φ400x1000

3300x1800x2200

YW-10

8-10

2-3

4

0.55

1.5

Φ500x1512

4000x2100x2200

YW-20

15-20

5-7

7.5

055

1.5

Φ500x1512

4600x2400x2200

YW-30

20-30

6-10

7.5

0.55

1.5

Φ500x1512

5200x2600x2400

YW-40

30-40

8-13

7.5

0.75

2.2

Φ600x1880

6000x2600x2400

YW-50

40-50

15-20

7.5

0.75

2.2

Φ600x1880

7000x2600x2400

YW-60

50-60

18-27

11

0.75

2.2

Φ600x1880

7600x2800x2400

YW-70

60-70

22-30

11

0.75

3

Φ650x2034

8400 x2800x2400

YW-80

70-80

24-32

11

0.75

3

Φ650x2034

9200x2800x2400

YW-100

90-105

30-35

15

0.75

4

Φ700x1980

10000x2800x2600

YW-150

125-150

60-80

22

1.1

4

Φ800x1980

13500x2800x2600

YW-200

175-200

80-100

22

1.1

5.5

Φ800x2100

15800x2800x2600

YW-250

225-250

110-120

22

1.1

5.5

Φ800x2400

15200x3400x2600

YW-300

280-300

120-180

37

1.1

5.5

Φ1000x2900

19200x3400x2800

Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 2Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 3Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 4Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 5Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 6

 Sedimentation And Treatment Equipment With Dissolved Air Flotation Device 7
