Product Details:
|
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lank | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Motor |
| Warranty: | 1 Year | Productivity: | 500L/Hour |
| Weight (KG): | 50 Kg | Treating Capacity: | 2-300CBM/hour |
| Certificate: | ISO9001:2008; CE Also Available | Material: | Anti-corrosion Q235 Arbon Steel/ 304SS/ 316SS |
| Character: | Wastewater Pretreatment Machine For Solid And Liquid Separation | After Warranty Service: | Field Maintenance And Repair Service |
| Port: | Qingdao |

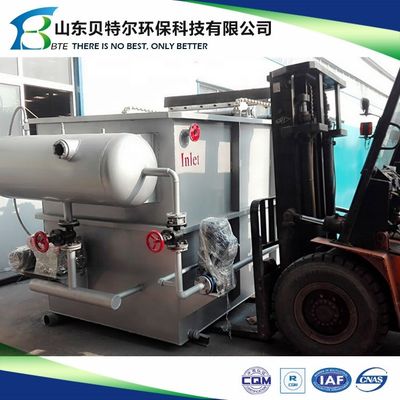

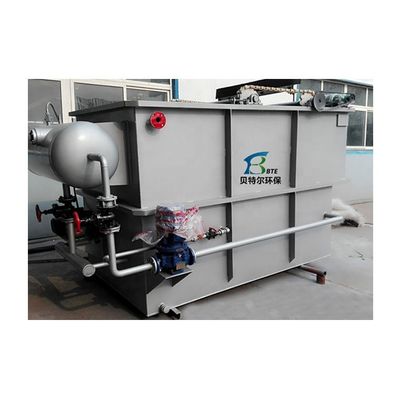

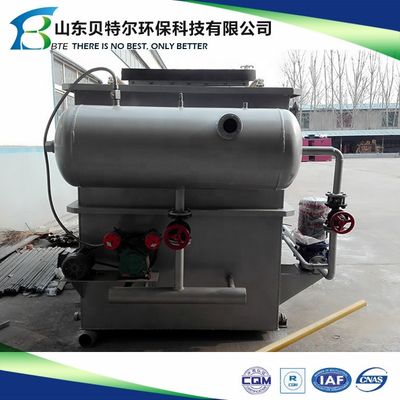

Solid and Liquid Separator, CE certified DAF Unit
(2-300CBM/hr. customized capacity)
Application
Corresponding water quality: high SS, and the specific gravity of suspended solids or contaminants is generally slight greater than water, settle effectively and have a pretty clear tendency to precipitate, like:
Oil and Fats, Food Industry effluents with high solids concentration,
Sludge Thickening,
Galvanizing Electroplanting,
Leather Industry,etc.
Technical Parameter
|
Specification |
Capacity (m3/h) |
Dissolved gas water (m3/h) |
Main dynamo power (kw) |
Foam scraper power (kw) |
Air compressor power (kw) |
Dissolved air tank size (mm) |
Overall dimension (mm) |
|
YW-5 |
4-5 |
1.5-2 |
3 |
0.37 |
1.5 |
Φ400x1000 |
3300x1800x2200 |
|
YW-10 |
8-10 |
2-3 |
3 |
0.37 |
1.5 |
Φ500x1512 |
4000x2100x2200 |
|
YW-20 |
15-20 |
5-7 |
7.5 |
0.37 |
1.5 |
Φ500x1512 |
4600x2400x2200 |
|
YW-30 |
20-30 |
6-10 |
7.5 |
0.37 |
1.5 |
Φ500x1512 |
5200x2600x2400 |
|
YW-40 |
30-40 |
8-13 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
6000x2600x2400 |
|
YW-50 |
40-50 |
15-20 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
7000x2600x2400 |
|
YW-60 |
50-60 |
18-27 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
7600x2800x2400 |
|
YW-80 |
70-80 |
24-32 |
7.5 |
0.55 |
1.5 |
Φ650x2034 |
9200x2800x2400 |
|
YW-100 |
90-100 |
30-35 |
15 |
0.55 |
3 |
Φ700x1980 |
10000x2800x2600 |
|
YW-150 |
125-150 |
60-80 |
22 |
1.1 |
3 |
Φ800x1980 |
13500x2800x2600 |
|
YW-200 |
175-200 |
80-100 |
22 |
1.1 |
3 |
Φ800x2100 |
15800x2800x2600 |
|
YW-250 |
225-250 |
110-120 |
22 |
1.1 |
3 |
Φ800x2400 |
15200x3400x2600 |
|
YW-300 |
280-300 |
120-180 |
37 |
1.1 |
5.5 |
Φ1000x2900 |
19200x3400x2800 |
A. Sedimentation type:
B. Flat bottom type
C. Civil Works Project:
Solution Advice, Installation &. Operation Guide
♥ If you are interested in our products, pls contact me.
1. We consistent good quality with reasonable price.
2. Big company, good reputation, more reliable.
3. Delivery in time.
4. Over 20 years' experience since 1991.
5.Considerable after-sales service.
