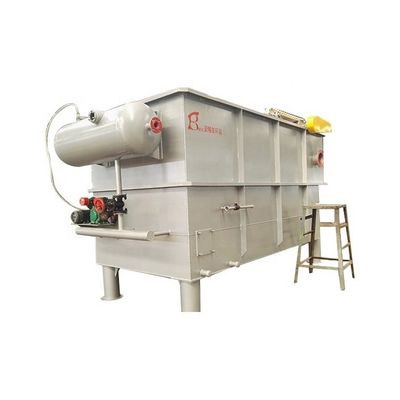

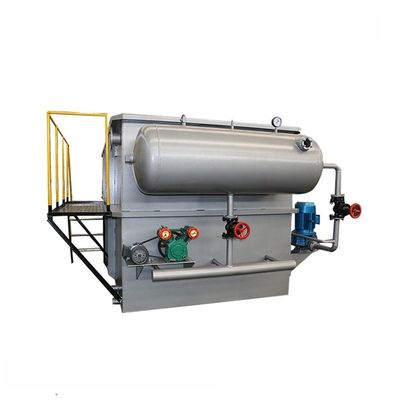

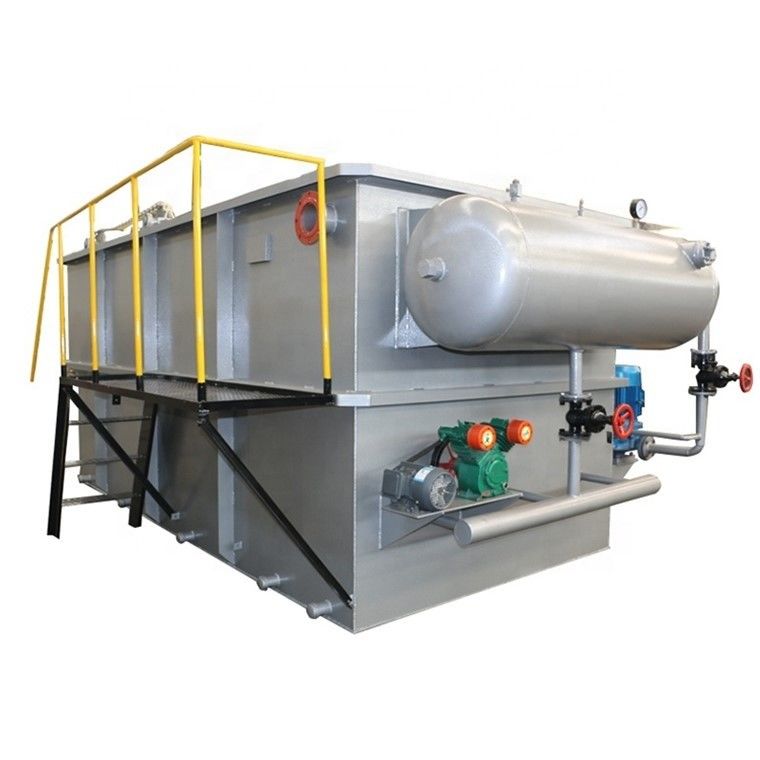

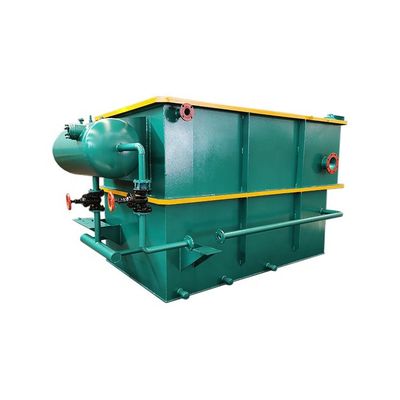

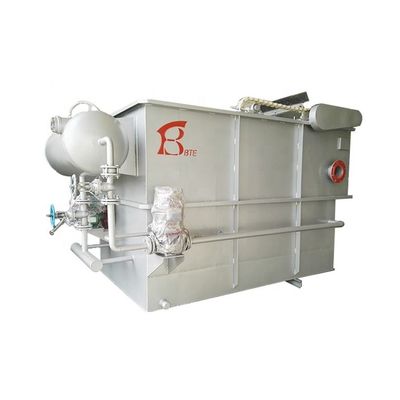

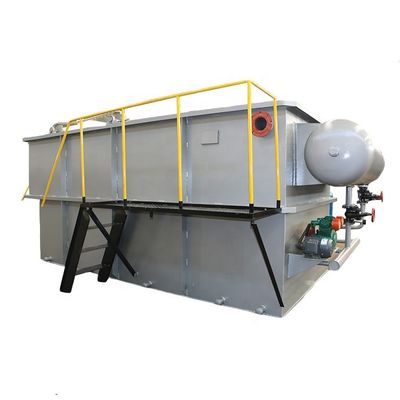

2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel

2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel

Large Image :  2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5,000.00/sets >=1 sets
Contact Now

2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: Burner
Material: SEAWORTHY, Carbon Steel Or Stainless Steel Weight: According To Model
Size: According To Model Power: AS MODEL
Warranty: 1 Year Productivity: 3000L/Hour
Weight (KG): 1000 Kg Name: DAF Dissolved Air Flotation
Color: Green Blue Silver Grey Or Customized Brand: Better
Voltage: Customized Capacity: 1-500m3/h
Keywords: DAF Dissolved Air Flotation Application: Wastewater Pre-treatment
Model: YW

2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 0
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 1
Tips：
If you can't find the model you need or don't know which one you need, please send us an inquiry for details Click to contact us>>
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 2
Product Description
Yw series Dissolved Air Floatation Machine is mainly used for solid-liquid or liquid-liquid separation. Large sum of micro bubbles
produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as waste water to moke
the whole float to the surface thus achieve the goal of separation.
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 3
model
capacity: m3/h
YW-5
1-5 m3/h
YW-10
6-10 m3/h
YW-15
11-15 m3/h
YW-20
16-20 m3/h
YW-30
30 m3/h
YW-50
50 m3/h
YW-100
100 m3/h
other capacity
can be customized different capacity
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 4
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 5
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 6
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 7
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 8
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 9
Direction
Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.

  • Description of application effect

(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water.
Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and
more algae.
Suitable area:
slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,leather and tannery, petrochemical industry, domestic
wastewater, etc.
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 10
Widely Application:
(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 11
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 12
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 13
2024 Dissolved Air Flotation Unit DAF Wastewater Treatment System in Stainless Steel 14
model
capacity
m3/h
main motor power    kw
scraper motor power kw
compressor power     kw
dissolved air tank size    mm
overall dimension    mm
YW-5
4-5
3
0.55
1.5
φ400*1000
3300*1800*2000
YW-10
8-10
4
0.55
1.5
φ500*1512
4000*2100*2200
YW-15
10-15
7.5
0.55
1.5
φ500*1512
4400*2400*2200
YW-20
15-20
7.5
0.55
1.5
φ500*1512
4600*2400*2200
YW-30
20-30
7.5
0.55
1.5
φ500*1512
5200*2600*2400
YW-40
30-40
7.5
0.75
2.2
φ600*1880
6000*2600*2400
YW-50
40-50
7.5
0.75
2.2
φ600*1880
7000*2600*2400
YW-60
50-60
11
0.75
2.2
φ600*1880
7600*2800*2400
YW-70
60-70
11
0.75
2.2
φ650*2034
8400*2800*2400
YW-80
70-80
11
0.75
3
φ650*2034
9200*2800*2400
YW-105
90-105
15
1.1
3
φ700*1980
10000*2800*2600
YW-200
175-200
30
1.1
5.5
φ800*2100
15800*2800*2600
YW-300
280-300
37
1.1
5.5
φ1000*2900
19200*3400*2800
The equipment can be loaded into container or by Flat Rack container, please don't worry loading. The machine can be customized according to different capacity.
