Customized Voltage Compact Screw Press for Low Noise Purification of Activated Sludge

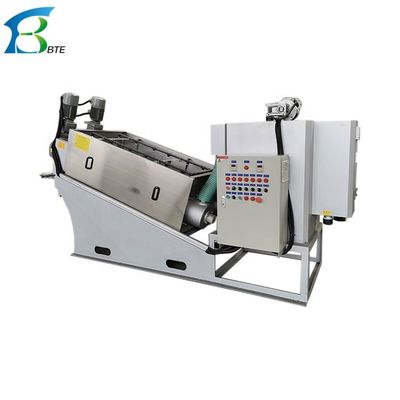

Large Image : Customized Voltage Compact Screw Press for Low Noise Purification of Activated Sludge

Product Details:

Place of Origin:	China
Brand Name:	Better
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,199.00/sets
Packaging Details:	Seaworthy packing or customized

Contact Now

Customized Voltage Compact Screw Press for Low Noise Purification of Activated Sludge

Description

Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops	Showroom Location:	Viet Nam, Philippines, Peru, Saudi Arabia, Pakistan, India, Mexico, Thailand, Kenya, Argentina, Algeria, Sri Lanka, Kazakhstan, Nigeria, Malaysia
Condition:	New	Automatic Grade:	Automatic
Voltage:	Customized	Warranty:	1 Year
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Malaysia, Kenya, Argentina, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Nigeria, Uzbekistan
After-sales Service Provided:	Online Support	Function:	Crush By Moveable And Fixed Plate
Material:	Stainless Steel	Advantage:	Low Energy Consumption,minimal Noise
Color:	Silver

Product Description

Screw press is also called sludge dewatering machine which uses the screw extrusion principle is a new type of solid-liquid separation device.It reaches the goal of extrusion dewatering sluge by the powerful extrusion pressure of changing the screw diameter and distance along with the tiny spacing between moveable and fixed annular plates.

Working principle

1. Concentration: When the screw pushes the shaft to rotate, the multiple solid laminated plates set
on the periphery of the thrust shaft move relative to each other. Under the action of gravity, water is filtered out from the
gaps of the relatively movable laminated plates to achieve rapid concentration.
2. Dehydration: The concentrated sludge moves forward with the rotation of the screw shaft; along
the mud cake outlet direction, the pitch of the screw shaft gradually becomes smaller, the gap between the ring and the ring
also gradually becomes smaller, the volume of the spiral cavity Continuously shrinking; Under the action of the back pressure
plate at the outlet, the internal pressure gradually increases. Under the continuous driving of the screw pushing shaft, the
water in the sludge is squeezed and discharged, the solid content of the filter cake is continuously increased, and finally
the sludge is realized. Continuous dehydration.
3. Self-cleaning: The rotation of the screw shaft promotes the continuous rotation of the swimming
ring. The equipment relies on the movement between the fixed ring and the moving ring to achieve a continuous self-cleaning
process, thereby cleverly avoiding the common plugging problem of the traditional dewatering machine.

�c� f(

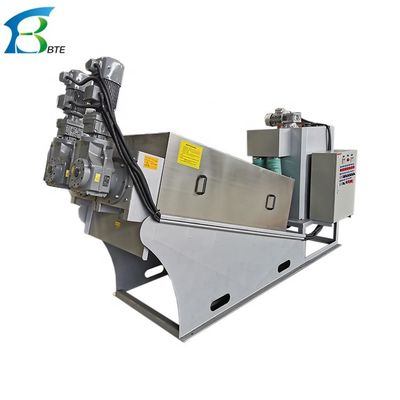

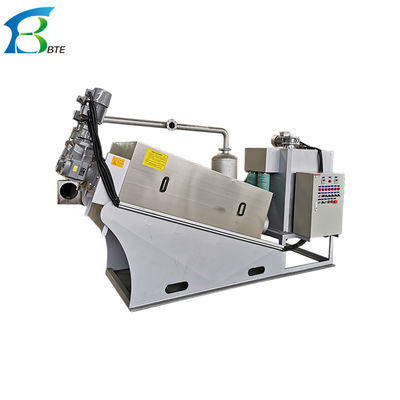

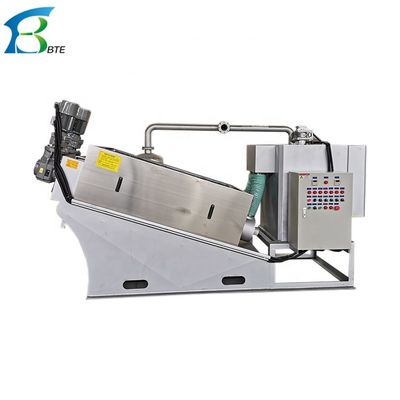

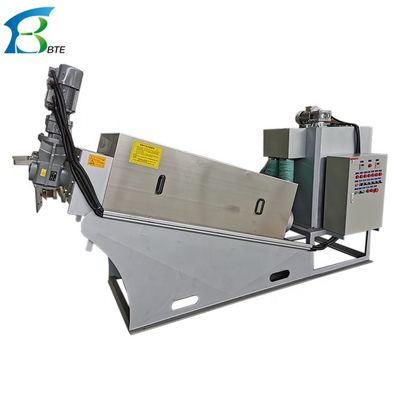

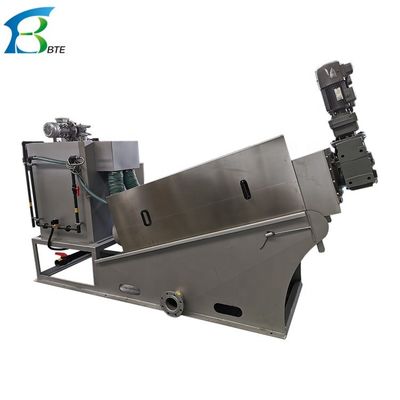

Detailed Images

Size Information

Model	Dimensions(mm)					Power (kw)	Weight(kg)
Model		L	W	H		Power (kw)	Empty	Operation
BDL-101	1756	700	1540	0.65	250	650
BDL-102	1756	900	1540	0.7	300	800
BDL-131	1757	700	1540	0.7	265	665
BDL-132	1757	900	1540	0.8	330	830
BDL-133	1847	1100	1540	0.9	400	1050
BDL-202	2485	1180	1728	1.45	850	1800
BDL-203	2591	1470	1728	1.8	1055	2355
BDL-204	2665	1780	1728	2.7	1450	3100
BDL-205	2741	2085	1728	2.9	1800	3700

Features

1. Low energy consumption
2. Minimal maintenance and operational cost
3. Minimal water consumption
4. Minimal noise
5. Achieves a dry matter content of 15-70%
6. Low polymer consumption
7. No need for proceeding sludge thicking.Sludge can be deeatered straight from the aeration tank
8. Capable for working 24/7
9. Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.

Using site
