A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float

A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float

Large Image :  A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,800.00/pieces 2-2 pieces
Packaging Details: Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability: 50 Set/Sets per Month

A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Italy, France, Germany, Viet Nam, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Algeria, Romania, Bangladesh, Japan, Australia Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2023
Warranty Of Core Components: 1 Year Core Components: Pump, Motor, Scraper, Air Compressor, Dissolved Air Tank
Material: Seaworthy, Stainless Steel /carbon Steel Weight: 1000kg
Size: Different As Each Model Power: Different As Each Model
Warranty: 1 Year Productivity: 3000L/Hour
Weight (KG): 1000 Kg Type: Pure Water Treatment System
After Warranty Service: Video Technical Support\Online Support\Spare Parts Advantage: 24 Hours Automatic Running
Key Words: Sewage Treatment System Color: Customized Colors
Voltage: 380V /Customized Use: Water Treatment Technologies
Shape: Rectangle Shape Port: Port Of Qingdao

Product Description

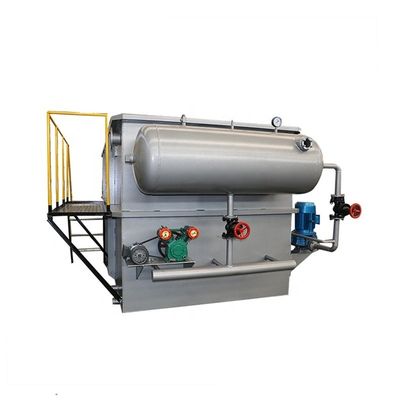

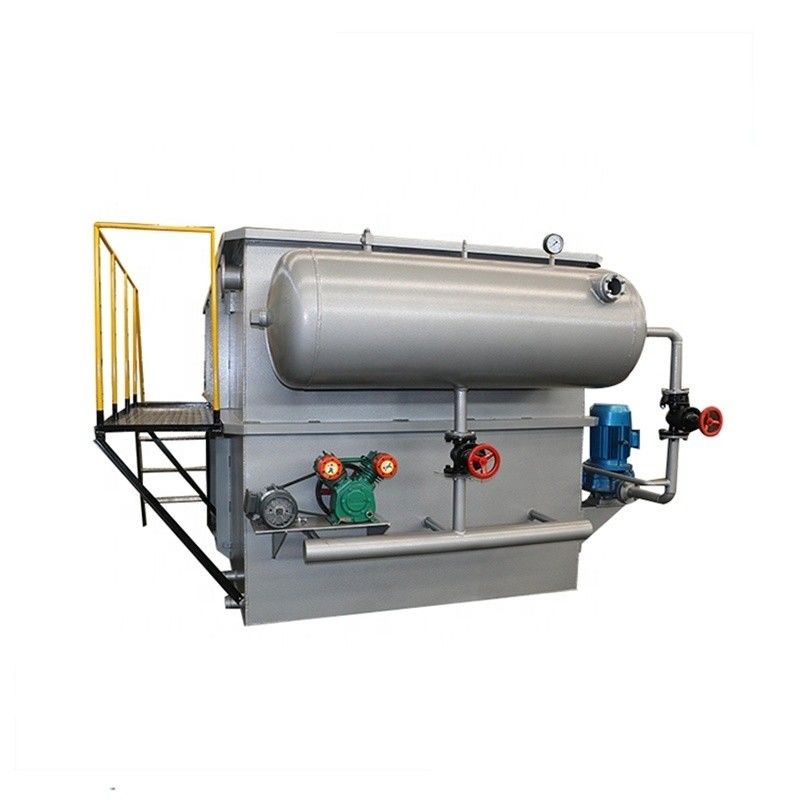

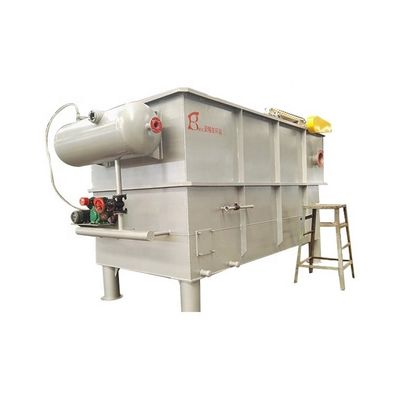

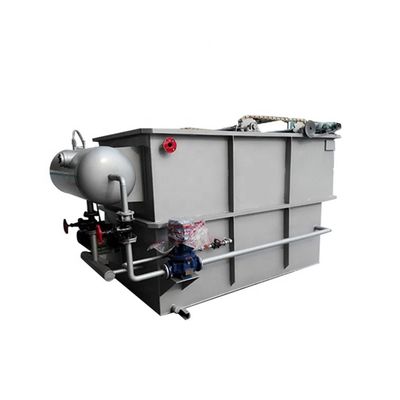

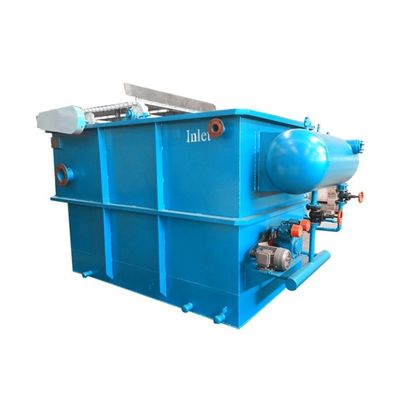

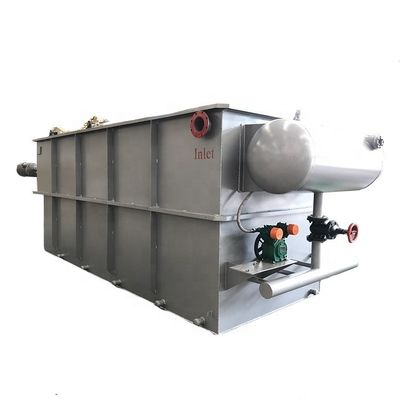

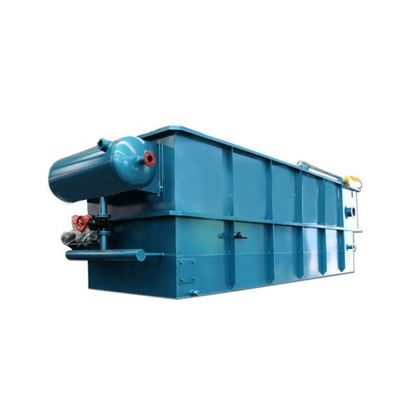

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.
Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 0
Model
Capacity(m3/h)
YW-5
4-5
YW-10
8-10
YW-50
40-50
YW-150
120-150
YW-300
280-300
  • Features

(1) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water.
Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(2) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and
more algae.Suitable area:
slaughtering, starch,  papermaking, printing and dyeing, leather and tannery, petrochemical industry, domestic wastewater, etc.
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 1
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 2
Features
(3) Large capacity, high efficiency and small occupying space.
(4) Compact structure, easy operation and maintenance.
(5) Silt expansion elimination.
Size Information
Size Chart of This Design
Model
Length (mm)

Width(mm)
Height(mm)
YW-5
3300
1800
2000
YW-50
7000
2600
2400
YW-100
10000
2800
2600
YW-150
13500
2800
2600
YW-300
19200
3400
2800
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 3
Application

(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 4
Packing&Shipping
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 5
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 6
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 7
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 8
Buyer's Praise
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 9
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 10
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 11
Related Products
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 12
A Combination Of Physical And Chemical Processes For Wastewater Pretreatment Air Float 13
FAQ
Q: How to buy your product?
A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommend you the suitable product.

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 3 to 4 weeks.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technician to guide for installation and debugging. After
debugging equipment, he will teach your workers how to use it and how to maintain it.

Q: How to visit your factory?
A: You could fly to Qingdao airport and we will pick up you to our company.
