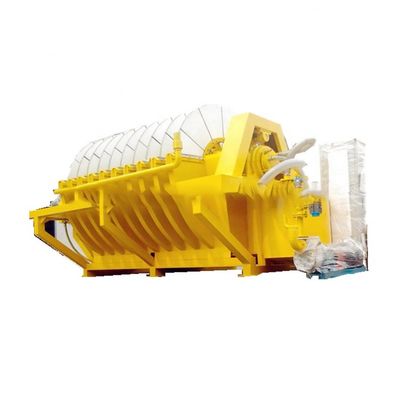

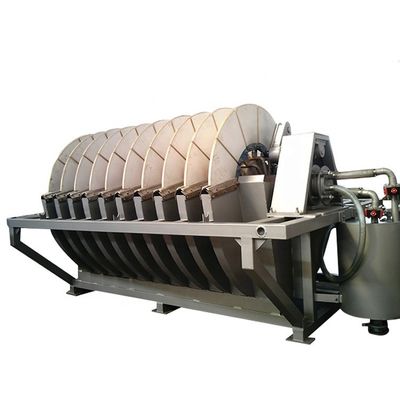

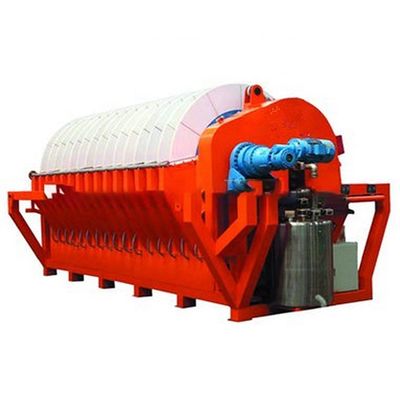

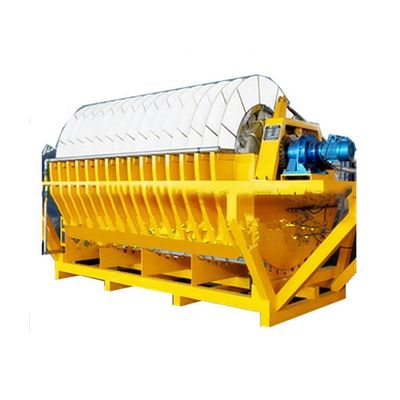

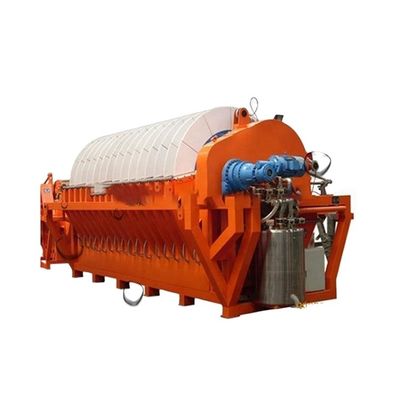

800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity

800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity

Large Image :  800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5,899.00/pieces 1-1 pieces
Packaging Details: container/ three ply-wood case..
Supply Ability: 50 Set/Sets per Month
Contact Now

800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity

Description
Condition: New Applicable Industries: Hotels, Food & Beverage Factory, Farms, Retail, Food Shop
Showroom Location: Egypt, Italy, Indonesia, Thailand, Morocco, Colombia, Kazakhstan, Tajikistan Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Motor, PLC
Weight: 800KG Size: 10*6
Power: 7.5KW Warranty: 1 Year
Productivity: 1000L/Hour Weight (KG): 1000 Kg
Product Name: CERAMIC VACUUM FILTER Material: SS/CS Rack Stainless Steel With Ceranic Plates
Capacity: 1000L/Hour Color: Yellow/Red/Green/etc
Operating Power: 6.6-30.37 Plates Number: 12-168
Installation Power: 7.6-43.81 Filter Plates: 1-14circles
Brand: BETTER MOQ: 1
Port: QINGDAO

800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 0
Product Overview
Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle,multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate. The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 1
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 2
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 3
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 4
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 5
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 6
Working principle
Ceramic filter shape and mechanism is similar with the working principle of vacuum belt filter, under the effect of pressure difference, suspended matter particle are intercepted on the medium surface then form as filter cake while liquid outflow from filter medium to realize solid-liquid separation. The difference is filter medium, ceramic filter plate is with micropore that can produce wicking effect. That makes the wicking effect stronger than vacuum force, and micropore keep a state full of liquid. In any case, ceramic filter plate don't allow air go through, because of this reason, while solid-liquid separating, energy is saving and vacuum degree is high. Ceramic filter mainly consists of rotor, stirrer, scraper components, slurry trough, distributor, ceramic filter plate, vacuum system, cleaning system, automaticcontrol system etc.
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 7
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 8
Main Structure
Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Trough body uses corrosion resistant stainless steel, can load ore pulp. Stirring system is stirring mixing materials in trough body to avoid the rapid subsidence of materials. Ceramic filter plate is installed on roller, roller can be rotated by the drive of stepless speed change reduction gears.

Filter medium of ceramic filter is ceramic filter plate, doesn’t need filter cloth, that reduces cost of production. The 1mm gap between scraper and filter plate prolongs the service life while discharging.

Using back washing and united cleaning etc. methods, full-automatic control by PLC, equipped with inverter, liquid level meter etc. device. While starting up, ore pulp valve is monitored by level meter, it controls height of ore pulp level. When to high level, PLC control system rapidly opens filtrate pump outlet valve to drain water quickly. Ceramic can use long-range control or centralized control according to different requirement by customers.
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 9
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 10
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 11
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 12
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 13
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 14
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 15
Project Case
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 16
Certifications
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 17
Company Profile
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 18
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 19
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 20
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 21
800KG Solid Liquid Separation Ceramic Disc Rotary Drum Vacuum Filter for Big Capacity 22
Packing&Shipping
