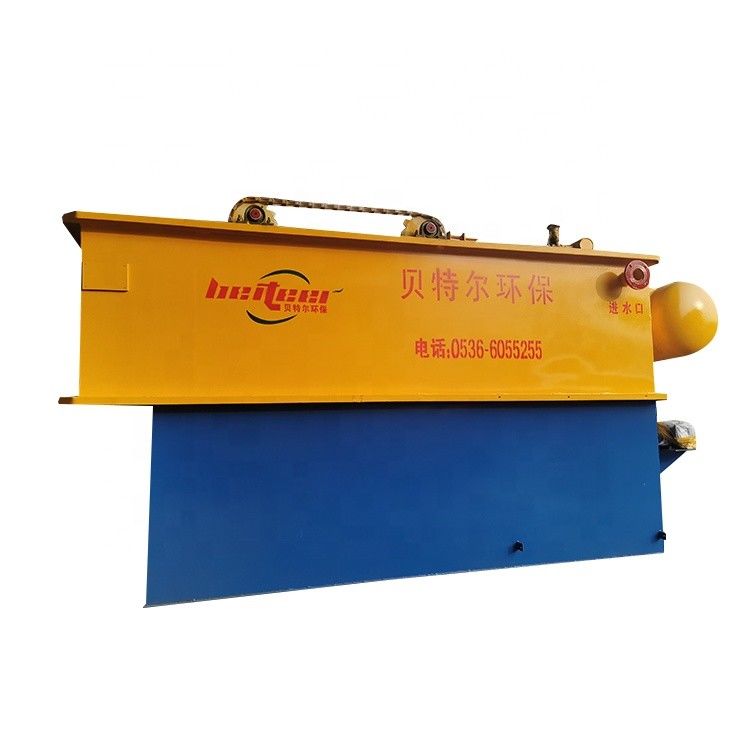

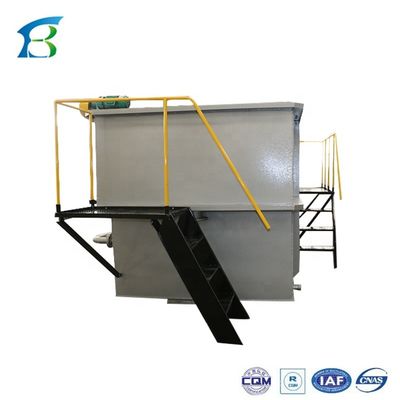

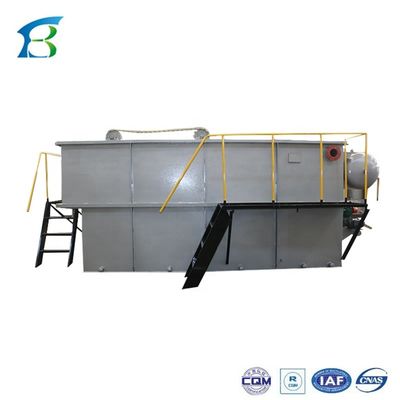

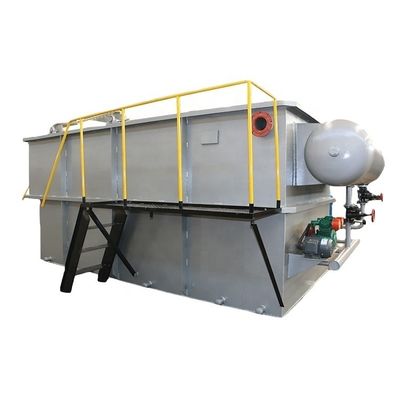

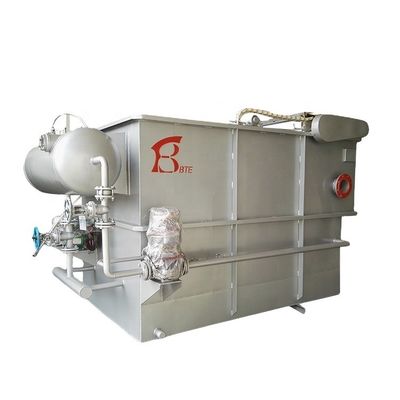

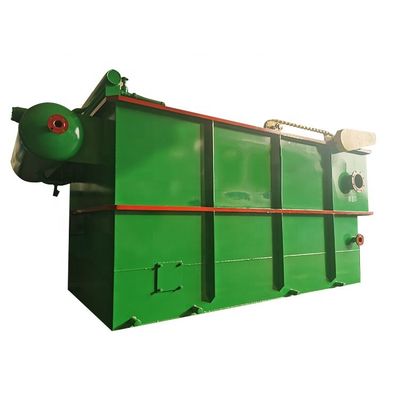

Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System

Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System

Large Image :  Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Certification: CE ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8,499.00/pieces 2-2 pieces
Packaging Details: Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability: 50 Set/Sets per Month

Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location: Egypt, Canada, Turkey, Italy, France, Germany, Viet Nam, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Algeria, South Africa, Japan, Australia Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2024
Warranty Of Core Components: 1 Year Core Components: Pump, Motor, Scraper, Air Compressor, Dissolved Air Tank
Material: Seaworthy Packing Weight: 1000kg
Size: Customized Size Power: As Model
Warranty: 1 Year Productivity: 3000L/Hour
Weight (KG): 1000 Kg Product Name: Dissolved Air Flotation
Application: Solid-liquid Separation Function: Water Treatment Systerm
Capacity: 1-500m3/h Color: Silver/green/black/blue
Shape: Rectangular Working Pressure: 0.5Mpa
Raw Material: Stainless Steel/carbon Steel Type: Pure Water Treatment System

Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 0
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 1
Tips:
If you can't find the model you need or don't know which one you need, please send us an inquiry for details
Click to contact us>>
Product Description
YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation.
Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 2
Model
Capacity(m3/h)
YW-5
4-5
YW-10
8-10
YW-50
40-50
YW-150
120-150
YW-300
280-300
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 3
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 4
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 5
Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
  • Features

(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water.
Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and
more algae.Suitable area:
slaughtering, starch,  printing and dyeing, leather and tannery, petrochemical industry, domestic wastewater, etc.
Low Consumption Air Flotation Equipment For Hospital Paper Sewage Purification System 6
Model
Length (mm)

Width(mm)
Height(mm)
YW-5
3300
1800
2000
YW-50
7000
2600
2400
YW-100
10000
2800
2600
YW-150
13500
2800
2600
YW-300
19200
3400
2800
Size Information
Size Chart of This Design

(1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
