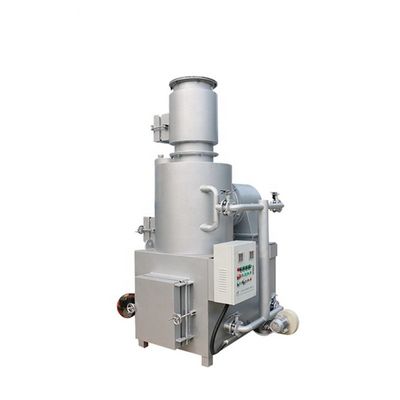

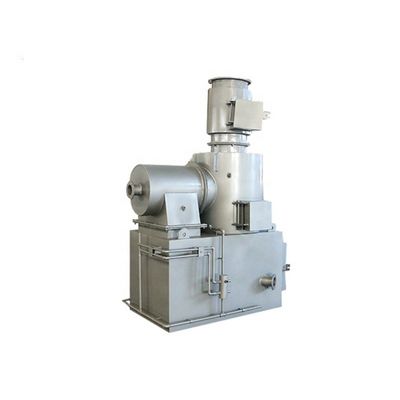

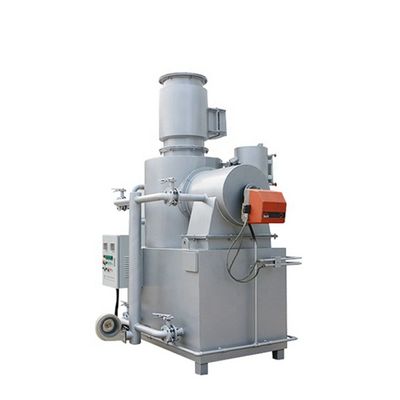

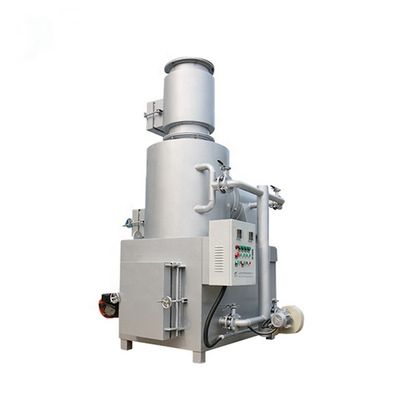

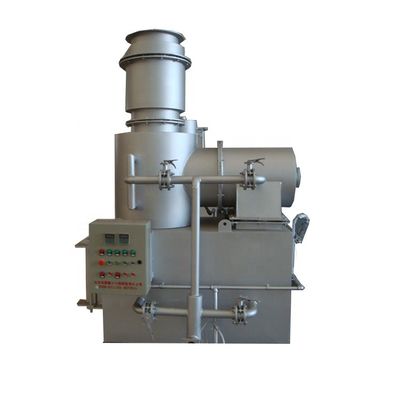

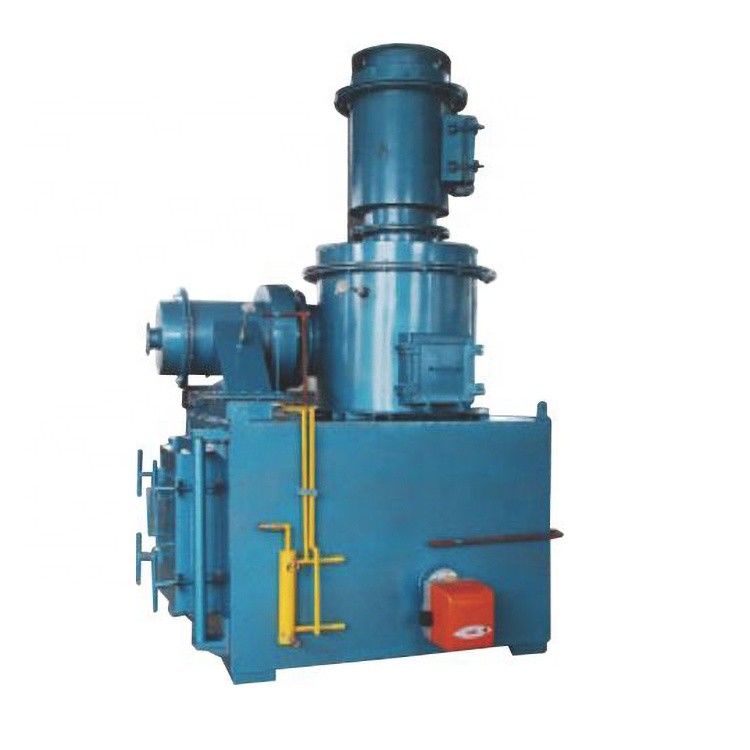

Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning

Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning

Large Image :  Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning

Product Details:
Place of Origin: Shandong, China
Brand Name: Better
Certification: CE ISO
Model Number: WFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6,999.00/sets 1-1 sets
Packaging Details: Standard Seaworthy Package or Customized.
Supply Ability: 300 Set/Sets per Year

Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Turkey, United Kingdom, United States, France, Germany, Viet Nam, Peru, Indonesia, Kenya, Colombia, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria Type: Refuse Collector
Warranty: 1 Year Power: 0.25kw
Material: Container Production Capacity: 50-100kg/h
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, PLC, Engine, Gearbox Weight (KG): 5000 Kg
Application: Hospital,Solid Waste Raw Material: Carbon Steel
After-sales Service Provided: Online Support Advantage: Smokeless
Fuel: Oil Gas Color: Customized Color
Size: Customized Size Brand: Better
Place Of Origin: Shandong,China Port: Qingdao

Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 0
Product Description
The incinerator with wet scrubber system consists of 3 parts,combustion chamber,cooling and spraying system, cyclone dust collector.The combustion chamber is responsible for incinerating waste under high temperature,anything flammable will be decomposed in the last chamber and some gas absorbed by CaO(calcium oxide) as you may know acids neutralize alkalis. Then gas flows into cooling and spraying tower for cooling down temperature and reduce solid dust.Finally goes into cyclone dust collector with the help of an induced draft fan,airflow will change from linear motion to circular motion,some dust that density is bigger than gas contact with the inner parts of machine fall down as lost the force of inertia.Other remaining dust along with falling airflow flows out machine after spiral moving.
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 1
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 2
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 3
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 4
Direction for use
There are 3 kinds of fuel you can choose,diesel,natural gas, LPG.
  • Description of application effect

Anything flammble can be burned ,it consists of two combustible chambers to make sure waste completely incinerated ,
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 5
model
WFS-30
WFS-50
WFS-150
WFS-300
WFS-500
Burning capacity
20-30kg/time (3-6 times/day)
30-50kg/time(3-6times/day)
100-150kg/time (3-6times/day)
200-300kg/time (3-6times/day)
300-400kg/time(3-6times/day)
incinerator Size m (L*H*B)
1.45*0.9*1.75
1.8*1.15*3
2*1.4*3.5
2.2*1.4*3.8
3*2*4.8
imputing mouth width (mm)
480*600
620*800
760*960
900*1100
1080*1280
Chimney external diameter (mm)
280
280
300
400
460
draught fan
0.25w
0.25w
0.37w
0.55kw
0.55kw
Combustion improver device
0.12kw
Oil consumption: 4-6kg/h
0.12kw
Oil consumption: 4-10kg/h
0.18kw
Oil consumption: 4-10kg/h
0.18kw
Oil consumption: 7-14kg/h
0.25kw
Oil consumption: 7-14kg/h
Re-burning device
0.18kw
Oil consumption 4-6 kg/h
0.18kw
Oil consumption: 4-10kg/h
0.25kw
Oil consumption: 7-14kg/h
0.25kw
Oil consumption: 10-20kg/h
0.25kw
Oil consumption: 15-26kg/h
voltage
380v/220v
380v/220v
380v/220v
380v/220v
380v/220v
Weight(kg)
2300
4000
7000
8000
13000
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 6
Detailed Images
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 7
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 8
Application
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 9
PACKAGING AND TRANSPORTATION
Carbon Steel Refuse Collector The Solution for Environmentally Friendly Waste Burning 10
normally the incinerator will be shipped without package, but we can pack them according to cusomers' requirements.
