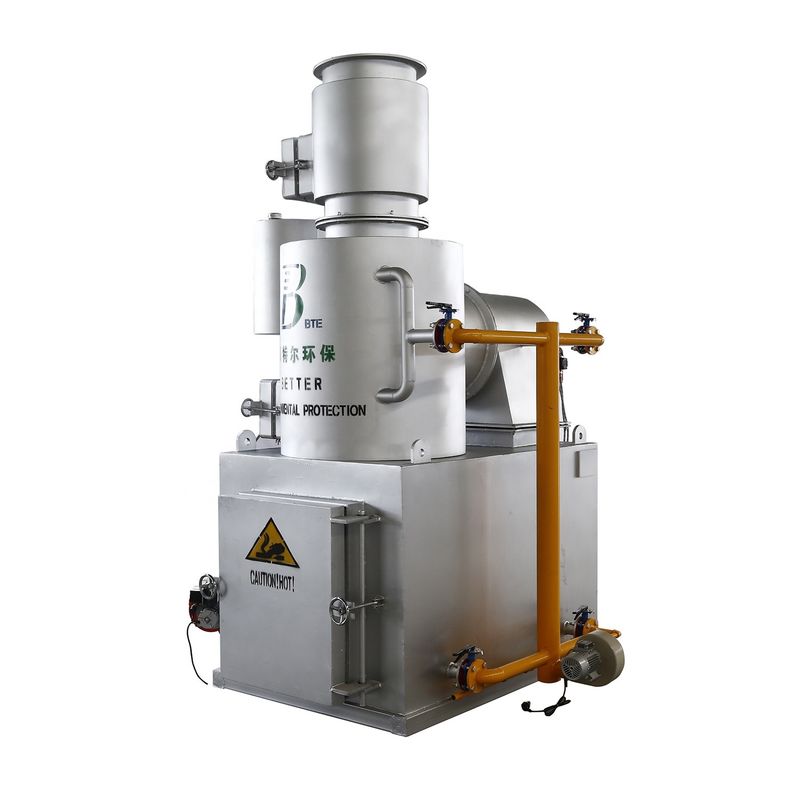

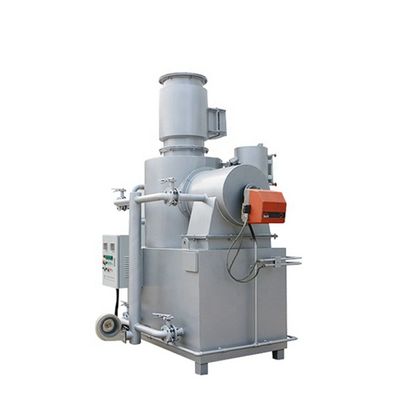

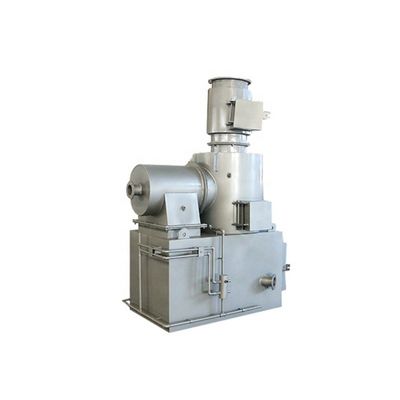

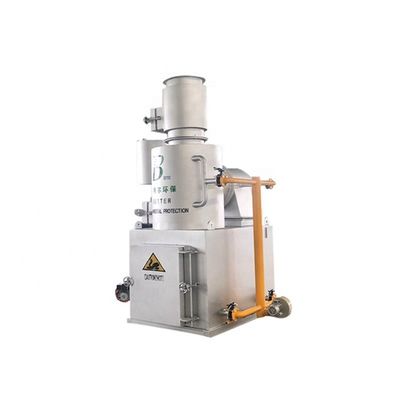

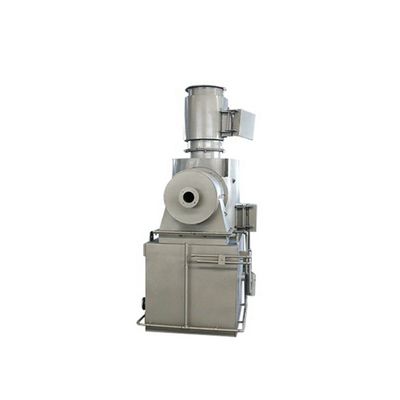

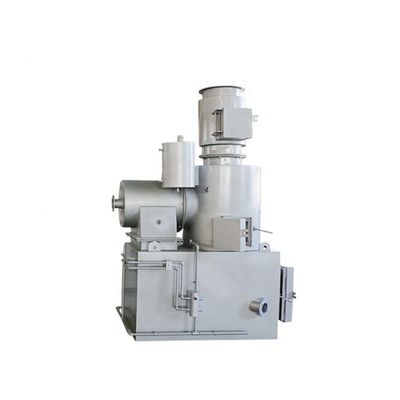

20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator

20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator

Large Image :  20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Model Number: WFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8,599.00/pieces 2-2 pieces
Packaging Details: Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability: 20 Piece/Pieces per Month

20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location: Egypt, Canada, Italy, France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Algeria, South Africa, Japan Type: Refuse Collector, Environment-friendly
Warranty: 1 Year Power: 7.5KW
Material: Seaworthy Packing Production Capacity: 750L/H
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2023 Warranty Of Core Components: 1 Year
Core Components: Motor, Other, Chimney, Air Blower, Burner Weight (KG): 1000 Kg
Application: Solid Waste Raw Material: Carbon Steel
Advantage: High Efficiecny Capacity: 20-500kgs/batch
Color: Customized Color Fuel: Natural Gas Incinerator
Technology: Gasification Incineration Technology Voltage: 220/380V
Size: Customized Size Port: Port Of Qingdao

Product Description
Advanced incineration technology and equipment from Japan are adopted to treat various animal carcasses, feces, hostipal solid waste and laboratory solid waste.Simple operation and easy maintenance.Energy saving, safety and reliability. Low price and long operating life.With advanced technology and excellent consistent quality, the equipment fully realizes the "harmless, non-quantized and stable" treatment of solid waste. It is the first choice equipment for the safe treatment of solid waste in all types of farms, animal farms, veterinary hospitals, zoos and laboratories.
WFS-30
20-30
(3-6times/day)
1.45*0.9*1.75
WFS-50
30-50
(3-6times/day)
1.8*1.15*3
WFS-150
100-150
(3-6times/day)
2*1.4*3.5
WFS-300
200-300
(3-6times/day)
2.2*1.4*3.8
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 0
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 1
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 2

The incinerator can meet the need of continuous operation and intermittent operation.The shell of the furnace body is steel structure,the inner wall is refractory casting material of different properties,it can ensure the sufficient combustion temperature,and keep the low temperature of the shell, to prevent scald.The whole refractory material is not easy to fall off and corrode.

  • Application

1.For various wastes,gasified pyrolysis incineration.
2.Burnout treatment ensures low emission standard of dust, dioxin etc.
3.Closed operation, suitable for treating infectious waste and avoiding secondary pollution
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 3
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 4
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 5
Size Information
Size Chart of This Design
Model
WFS-30
WFS-50
WFS-150
WFS-300
WFS-500
Burning
Capacity
(kg/time)
20-30
(3-6times/day)
30-50
(3-6times/day)
100-150
(3-6times/day)
200-300
(3-6times/day)
300-400
(3-6times/day)
Incinerator
Size m(LxBxH)
1.45*0.9*1.75
1.8*1.15*3
2*1.4*3.5
2.2*1.4*3.8
3*2*4.8
Imputing
Mouth Width(mm)
480*600
620*800
760*960
900*1100
1080*1280
Chimney
External
Diameter
(mm)
280
280
300
400
460
Draught Fan
(kw)
0.37
0.37
0.5
1.1
1.1
0.55
Combustion
Improver
Device
Power0.11kw
Oil Consumpution
4-6kg/h
Power0.11kw
Oil Consumpution
4-10kg/h
Power0.11kw
Oil Consumpution
5-12kg/h
Power0.22kw
Oil Consumpution
7-14kg/h
Power0.22kw
Oil Consumpution
7-14kg/h
Re-Burning
Device
Power0.11kw
Oil Consumpution
4-6kg/h
Power0.11kw
Oil Consumpution
4-10kg/h
Power0.22kw
Oil Consumpution
7-14kg/h
Power0.37kw
Oil Consumpution
10-20kg/h
Power0.37kw
Oil Consumpution
15-26kg/h
Voltage
380v/220v
380v/220v
380v/220v
380v/220v
380v/220v
Packing&Shipping
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 6
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 7
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 8
Company Introduction
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 9
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 10
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 11
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 12
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 13
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 14
certificate
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 15
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 16
After Sales Service
20-500kgs/batch Capacity Waste Combustion Treatment Equipment Pyrolysis Incinerator 17
FAQ
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: when will it be shipped? A: It depends on the quantity ordered.It's usually about 15 days.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technicians to guide for installation and debugging. after
debugging equipment, he will teach your workers how to use it and how to maintain it.
Q: How about the warranty? A: If there is any malfunction of the equipment during the warranty period, our company promises to propose a solution within 24 hours. If it is caused by non-human causes, our company provides repairs free of charge and guarantees that the equipment is running well again.
