3000L/Hour Productivity Boost Industry Standards with Plants and Dissolved Dir Floats

Large Image : 3000L/Hour Productivity Boost Industry Standards with Plants and Dissolved Dir Floats

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Better
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$7,999.00/pieces 2-2 pieces
Packaging Details:	Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability:	50 Set/Sets per Month

Contact Now

3000L/Hour Productivity Boost Industry Standards with Plants and Dissolved Dir Floats

Description

Condition:	New	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Italy, France, Germany, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Colombia, Romania, South Africa, Malaysia, Australia	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product
Warranty Of Core Components:	1 Year	Core Components:	Motor, Scraper, Air Compressor, Dissolved Air Tank
Material:	Wooden Package With Film, Carbon Steel	Weight:	Depends On Capacity
Size:	Depends On Capacity	Power:	Depends On Capacity
Warranty:	1 Year	Productivity:	3000L/Hour
Weight (KG):	1200 Kg	Product Name:	Dissolved Air Flotation
Application:	Wastewater Treatment Plant	After-sales Service Provided:	Video Technical Support\Online Support
Capacity:	1-500m3/h	Color:	Customers Demands
Shape:	Rectangular	Voltage:	380V/220V
Advantage:	24 Hours Automatic Running	Port:	Port Of Qingdao

Product Description

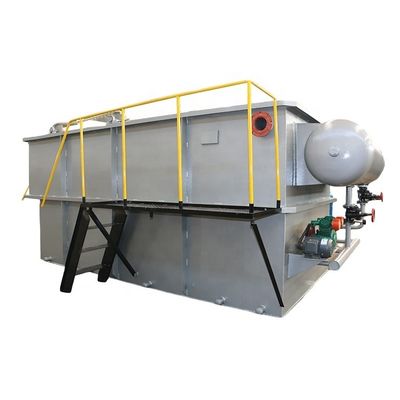

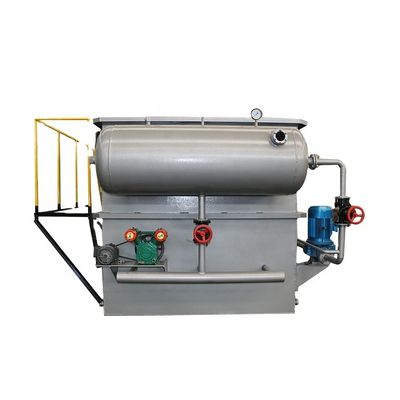

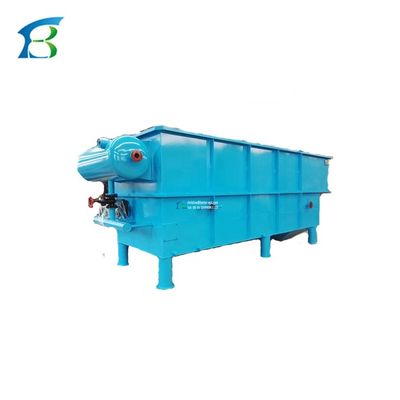

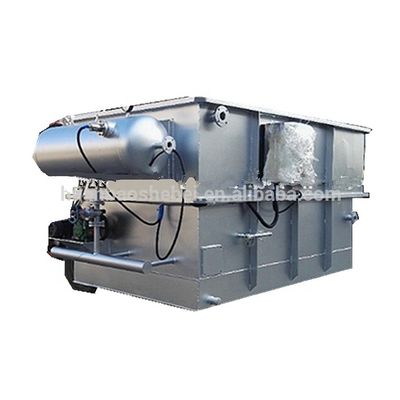

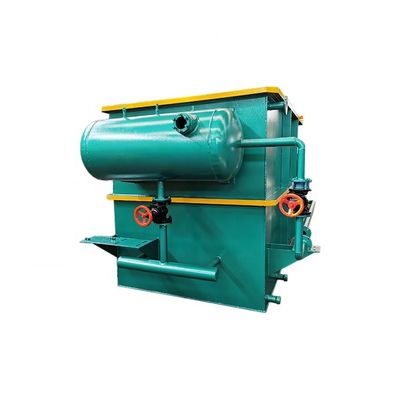

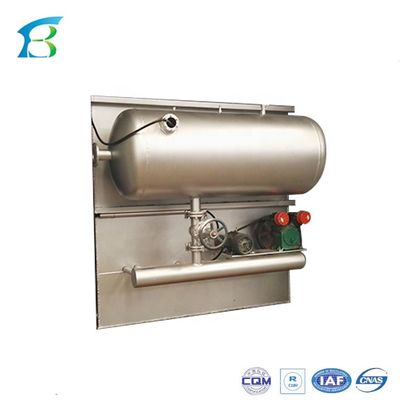

YW series Dissolved Air Flotation Machine is mainly used for solid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as wastewater to make the whole float to the surface thus achieve the goal of separation.

Structure

1.Air dissolving system

(Dissolved air pump

Air compressor

Dissolved air tank

Release)

2.Air flotation tank

3.Scraping system

(Foam scraper reducer

Chain

Scraping board)

Features of DAF
1).Design treatment capacity:5-300 m3/h.
2).High-rate clarifier for high SS water (light particles, oil and colloid).
3).Fully(100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4).Indoor or outdoor layout (environmental temperature should be over 0°C).
5).Apply to automatic & continuous operation.
6).Design life: Carbon steel material:>10years;
304 Stainless steel material:>20years.
316 Stainless steel material:>25 years

Technical parameter

Model	Capacity	Air water amount(m³/h)	Air pump(kw)	Foam scraper power(kw)	Air compressor power(kw)	Air tank size(mm)	Dimension(mm)
YW-5	4-5	1.5-2	3	0.55	1.5	400×1000	3300×1800×2200
YW-10	8-10	2-3	4	0.55	1.5	500×1512	4000×2100×2200
YW-15	10-15	4-6	7.5	0.55	1.5	500×1512	4400×2100×2200
YW-20	15-20	5-7	7.5	0.55	1.5	500×1512	4600×2400×2200
YW-30	20-30	6-10	7.5	0.75	1.5	500×1512	5200×2600×2400
YW-40	30-40	8-13	7.5	0.75	1.5	600×1880	6000×2600×2400
YW-50	40-50	15-20	7.5	0.75	2.2	600×1880	7000×2600×2400
YW-60	50-60	18-27	11	0.75	2.2	600×1880	7600×2800×2400
YW-70	60-70	22-30	11	0.75	2.2	650×2034	8400×2800×2400
YW-80	70-80	24-32	11	1.1	2.2	650×2034	9200×2800×2400
YW-100	90-100	30-35	15	1.1	3	700×1980	10000×2800×2600
YW-150	125-150	60-80	22	1.1	4	800×1980	13500×2800×2600
YW-200	175-200	80-100	30	1.1	5.5	800×2100	15800×2800×2600
YW-250	225-250	110-120	37	1.1	5.5	800×2400	18000×2800×2600
YW-300	280-300	120-180	37	1.1	5.5	1000×2900	19200×3400×2800

Testing

Our workshop

Packing & Delivery

Standard Seaworthy Package or Customized.

Company Profile

Customers from different countries

FAQ

1. Who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(62.00%),Southeast Asia(10.00%),South America(9.00%),Africa(8.00%),Mid East(3.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Sewage Treatment Equipment; Waste Incinerator; Sludge Dewater Machine; Organic Waste Aerobic Compost Machine

4. Why should you buy from us not from other suppliers?
We have the strong ability of environmental protection equipment manufacture and design.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French

Contact Details

Shandong Better Environmental Protection Technology Co., Ltd

Contact Person: Ms. Christine Zhu

Tel: +8613356363253
