(Dissolved air pump
Air compressor
Dissolved air tank
Release)
2.Air flotation tank
3.Scraping system
(Foam scraper reducer
Chain
Scraping board)
|
Product Details:
|
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Showroom Location: | Egypt, Canada, Turkey, Italy, France, Germany, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Algeria, Japan, Australia | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Motor, Scraper, Air Compressor, Dissolved Air Tank |
| Material: | Seaworthy Packing | Weight: | 1000kg |
| Size: | Customized Size | Power: | As Model |
| Warranty: | 1 Year | Productivity: | 3000L/Hour |

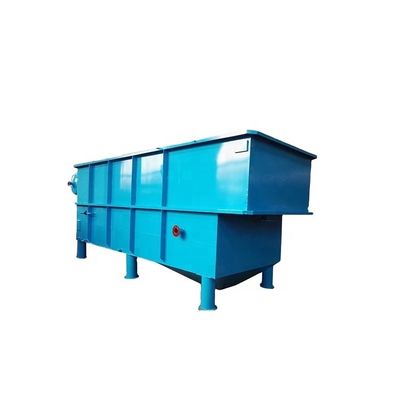

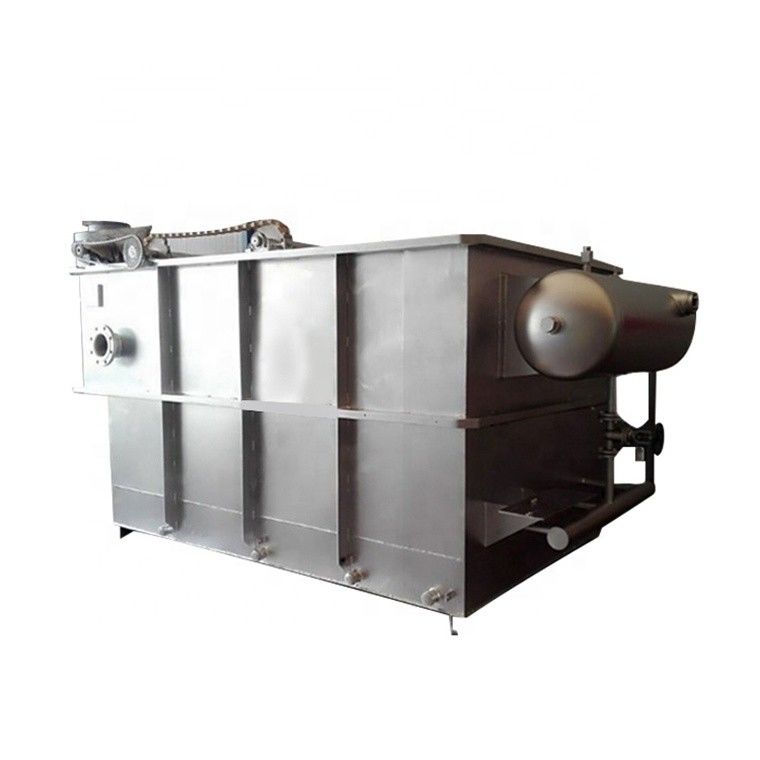

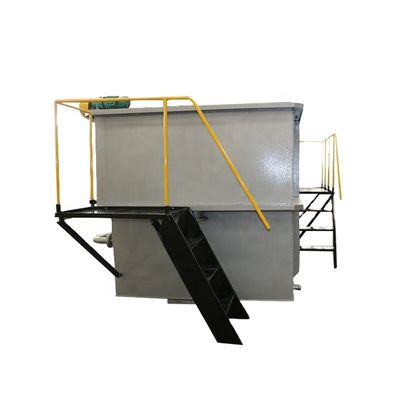

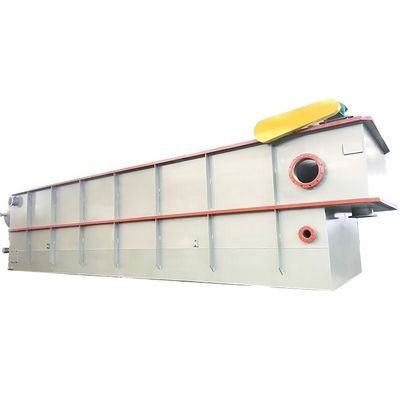

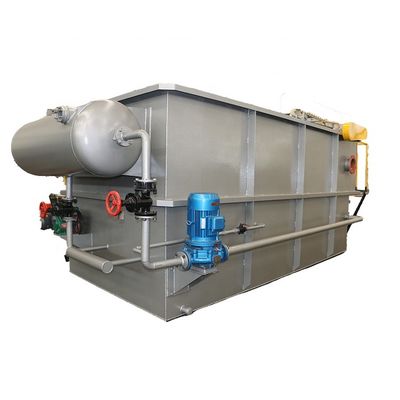

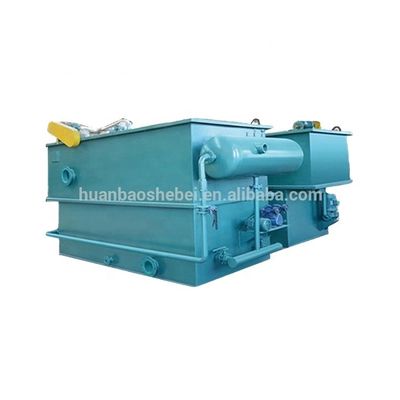

| Weight (KG): | 1000 Kg | Product Name: | Dissolved Air Flotation |
| Application: | Solid-liquid Separation | Function: | Water Treatment Systerm |
| Capacity: | 1-500m3/h | Color: | Silver/green/black/blue |
| Shape: | Rectangular | Working Pressure: | 0.5Mpa |
| Raw Material: | Stainless Steel/carbon Steel | Type: | Pure Water Treatment System |
Model | Capacity | Air water amount(m3/h) | Air pump(kw) | Foam scraper power(kw) | Air compressor power(kw) | Air tank size(mm) | Dimension(mm) |
YW-5 | 4-5 | 1.5-2 | 3 | 0.55 | 1.5 | 400×1000 | 3300×1800×2200 |
YW-10 | 8-10 | 2-3 | 4 | 0.55 | 1.5 | 500×1512 | 4000×2100×2200 |
YW-15 | 10-15 | 4-6 | 7.5 | 0.55 | 1.5 | 500×1512 | 4400×2100×2200 |
YW-20 | 15-20 | 5-7 | 7.5 | 0.55 | 1.5 | 500×1512 | 4600×2400×2200 |
YW-30 | 20-30 | 6-10 | 7.5 | 0.75 | 1.5 | 500×1512 | 5200×2600×2400 |
YW-40 | 30-40 | 8-13 | 7.5 | 0.75 | 1.5 | 600×1880 | 6000×2600×2400 |
YW-50 | 40-50 | 15-20 | 7.5 | 0.75 | 2.2 | 600×1880 | 7000×2600×2400 |
YW-60 | 50-60 | 18-27 | 11 | 0.75 | 2.2 | 600×1880 | 7600×2800×2400 |
YW-70 | 60-70 | 22-30 | 11 | 0.75 | 2.2 | 650×2034 | 8400×2800×2400 |
YW-80 | 70-80 | 24-32 | 11 | 1.1 | 2.2 | 650×2034 | 9200×2800×2400 |
YW-100 | 90-100 | 30-35 | 15 | 1.1 | 3 | 700×1980 | 10000×2800×2600 |
YW-150 | 125-150 | 60-80 | 22 | 1.1 | 4 | 800×1980 | 13500×2800×2600 |
YW-200 | 175-200 | 80-100 | 30 | 1.1 | 5.5 | 800×2100 | 15800×2800×2600 |
YW-250 | 225-250 | 110-120 | 37 | 1.1 | 5.5 | 800×2400 | 18000×2800×2600 |
YW-300 | 280-300 | 120-180 | 37 | 1.1 | 5.5 | 1000×2900 | 19200×3400×2800 |
