2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Large Image :  2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Model Number: WFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,600.00/pieces 2-2 pieces

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Italy, France, Germany, Viet Nam, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Colombia, South Africa, Japan, Malaysia, Australia Type: Refuse Collector
Warranty: 1 Year Power: 7.5KW
Material: Seaworthy Packing Production Capacity: 750L/H
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Motor, Other, Chimney, Burner, Air Blower Weight (KG): 2500 Kg
Name: Waste Burner Waste Incinerator Raw Material: Carbon Steel
Capacity: 20-500kgs/batch Function: Waste Burning
Advantage: Smokeless Color: Slivery/black
Technology: Gasification Incineration Technology Size: Customized Size
Fuel: Oil Fue/gas Feature: Eco-friendly

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 0
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 1
Tips:
If you can't find the model you need or don't know which one you need, please send us an inquiry for details
Click to contact us>>
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 2
Product Description
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 3

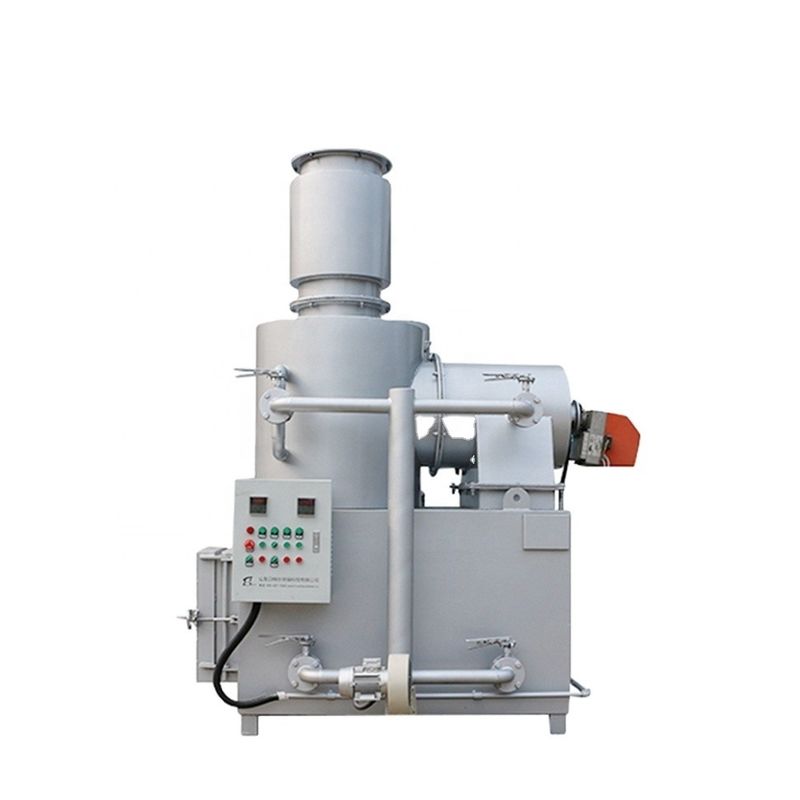

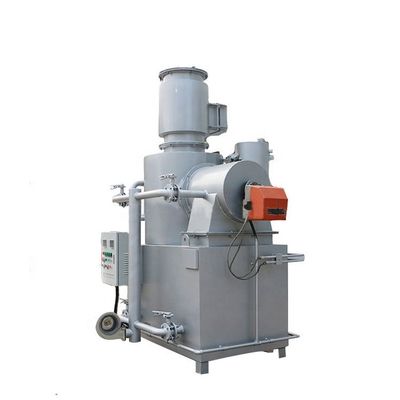

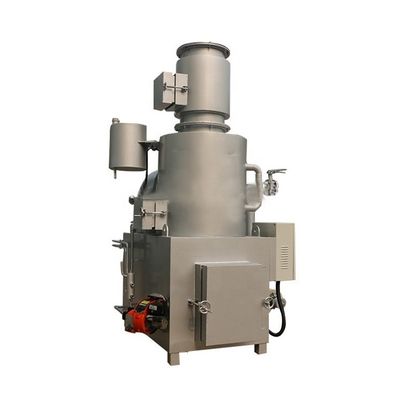

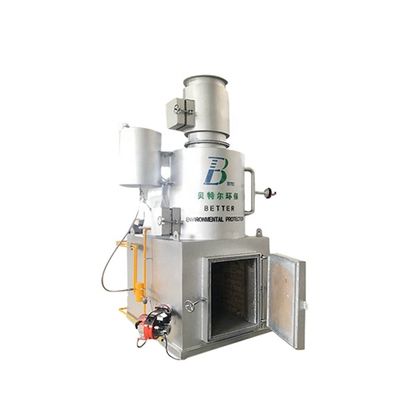

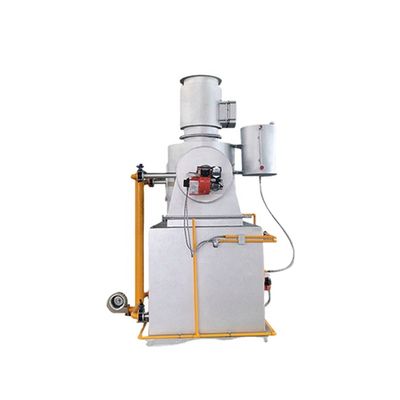

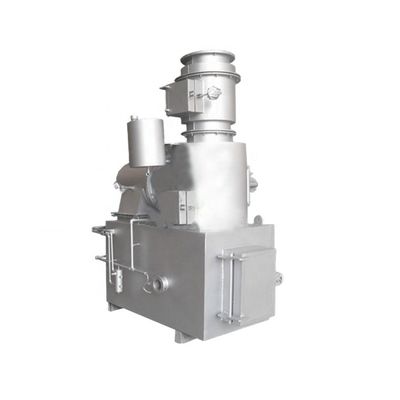

Waste incinerator
Waste incinerator is a kind of harmless treatment equipment used in hostipal waste, domestic waste and animal waste treatment. The principle is to use the combustion of coal, fuel oil, gas and other fuels to let the waste be subjected to high temperature incineration and carbonization to achieve the purpose of disinfection treatment.

Advantages and prospect

Waste incineration is suitable for domestic garbage, hostipal waste, and general industrial waste. Compared with landfill and compost, waste incineration is more efficient( one load takes about one hour), saves land and does not cause surface water and groundwater pollution. In the case of accelerated urbanization and shortage of construction land, waste incineration has become a realistic choice for cities with dense population, tight land use and garbage siege.
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 4
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 5
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 6

Application

The incinerator can be used in burning most solid waste, including medical waste, domestic waste and so on.The purification rate could increase to 97%. The harmful components in smoke is reduced to the international standard
below the specified value.
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 7
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 8

The incinerator structure

The incinerator consists of four parts: main body, the control system, the fuel oil system and the air system.
The main body includes 4 parts: first combustion chamber, second combustion chamber, smoke purification chamber and chimney.
The control system consists of distribution box, two thermocouples and control circuit.
The fuel oil system consists of one oil tank, two combustors, and oil pipeline.
The air system includes air blower, air pipeline, four butterfly valvles.
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 9


Techinical parameters

Model
Capacity
Waste inlet size(mm)
Air Fan
Combustion burner
Re-combustion burner
WFS-30
10-30 kg/h
480*600
0.37kw
0.11kw, oil consumption 4-6kg/h
0.11kw, oil consumption 4-6kg/h
WFS-50
30-50 kg/h
620*800
0.37kw
0.11kw, oil consumption 4-10kg/h
0.11kw, oil consumption 4-10kg/h
WFS-150
100-150 kg/h
760*960
0.5kw
0.11kw, oil consumption 5-12kg/h
0.22kw, oil consumption 7-14kg/h
WFS-300
200-300 kg/h
900*1100
1.1kw
0.22kw, oil consumption 7-14kg/h
0.37kw, oil consumption 10-20kg/h
WFS-500
300-500 kg/h
1080*1280
1.1kw
0.22kw, oil consumption 7-14kg/h
0.37kw, oil consumption 15-26kg/h


Manufacture process

2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 10
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 11
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 12
Technical support

1. 3D operation video
2. English manual book
3. Technical drawing
4. Experienced engineers guide.



To install the incinerator, we should make sure all parts of incinerator are complete. And we need one crane and 3 workers,1 electrician, and prepared concrete base.
2024 Hot Secondary Combustion Chamber Advanced Technology for Solid Waste Incinerator 13
