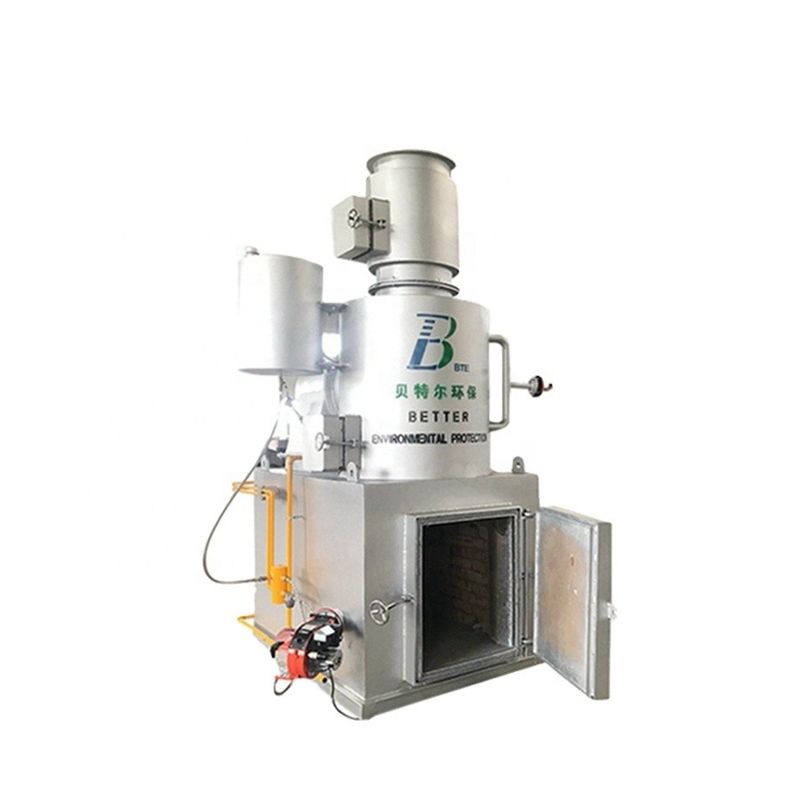

Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning

Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning

Large Image :  Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Model Number: WFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8,600.00/pieces 2-2 pieces
Packaging Details: Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability: 20 Piece/Pieces per Month

Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Italy, France, Germany, Viet Nam, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Colombia, South Africa, Japan, Malaysia, Australia Type: Refuse Collector
Warranty: 1 Year Power: 7.5KW
Material: Seaworthy Packing Production Capacity: 750L/H
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2024 Warranty Of Core Components: 1 Year
Core Components: Motor, Other, Chimney, Burner, Air Blower Weight (KG): 2500 Kg
Name: Waste Burner Waste Incinerator Raw Material: Carbon Steel
Capacity: 20-500kgs/batch Function: Waste Burning
Advantage: Smokeless Color: Slivery/black
Technology: Gasification Incineration Technology Size: Customized Size
Fuel: Oil Fue/gas Feature: Eco-friendly

Product Description
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 0
Waste incinerator
Waste incinerator is a kind of harmless treatment equipment used in hostipal waste, domestic waste and animal waste treatment. The principle is to use the combustion of coal, fuel oil, gas and other fuels to let the waste be subjected to high temperature incineration and carbonization to achieve the purpose of disinfection treatment.

Advantages and prospect

Waste incineration is suitable for domestic garbage, hostipal waste, and general industrial waste. Compared with landfill and compost, waste incineration is more efficient( one load takes about one hour), saves land and does not cause surface water and groundwater pollution. In the case of accelerated urbanization and shortage of construction land, waste incineration has become a realistic choice for cities with dense population, tight land use and garbage siege.
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 1
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 2
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 3

Application

The incinerator can be used in burning most solid waste, including medical waste, domestic waste and so on.The purification rate could increase to 97%. The harmful components in smoke is reduced to the international standard
below the specified value.
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 4
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 5

The incinerator structure

The incinerator consists of four parts: main body, the control system, the fuel oil system and the air system.
The main body includes 4 parts: first combustion chamber, second combustion chamber, smoke purification chamber and chimney.
The control system consists of distribution box, two thermocouples and control circuit.
The fuel oil system consists of one oil tank, two combustors, and oil pipeline.
The air system includes air blower, air pipeline, four butterfly valvles.
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 6


Techinical parameters

Model
Capacity
Waste inlet size(mm)
Air Fan
Combustion burner
Re-combustion burner
WFS-30
10-30 kg/h
480*600
0.37kw
0.11kw, oil consumption 4-6kg/h
0.11kw, oil consumption 4-6kg/h
WFS-50
30-50 kg/h
620*800
0.37kw
0.11kw, oil consumption 4-10kg/h
0.11kw, oil consumption 4-10kg/h
WFS-150
100-150 kg/h
760*960
0.5kw
0.11kw, oil consumption 5-12kg/h
0.22kw, oil consumption 7-14kg/h
WFS-300
200-300 kg/h
900*1100
1.1kw
0.22kw, oil consumption 7-14kg/h
0.37kw, oil consumption 10-20kg/h
WFS-500
300-500 kg/h
1080*1280
1.1kw
0.22kw, oil consumption 7-14kg/h
0.37kw, oil consumption 15-26kg/h


Manufacture process

Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 7
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 8
After Sales Service
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 9
Technical support

1. 3D operation video
2. English manual book
3. Technical drawing
4. Experienced engineers guide.



To install the incinerator, we should make sure all parts of incinerator are complete. And we need one crane and 3 workers,1 electrician, and prepared concrete base.
Business case
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 10
Packing&Shipping
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 11
Company Profile
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 12
Shandong Better Environmental Protection Technology Co, Ltd is a direct manufacture factory with ten years experience in wastemanagement and wastewater treatment equipment. During the past decade, we won very good reputation among our customers all over the world by the perfect production and reliable quality such as Korea, Turkey Janpan, Saudi Arabia, Bangledesh, Iran, Iraq, Vietnam, Singapore, Maldives, Malaysia Argentina, Colombia, Ecuador, Mexico, Mongolia, UZ, Cango, Senegal, Nigerial, Trinidad and Tobago, Kuwait, etc, and got the National Patent for our products.
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 13
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 14
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 15
Smokeless Large Animal Slaughterhouse Incineration for Customized Size Waste Burning 16
FAQ

Q: What about your company?
A: Our company is direct incinerator manufacture factory. We have over 17 years experience of waste incinerator manufacture and application.

Q: How to buy your incinerators?
A: You can provide us the waste kind and waste quantity(connect us for more details). we will recommand you the suitable model incinerator.

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 2 to 3 weeks.

Q: How to pack the products?
A: We use standard package.

Q: How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. And we will send a technicians to guide for installation and debugging. after
debugging equipment, he will teach your workers how to use it and how to maintain it.
