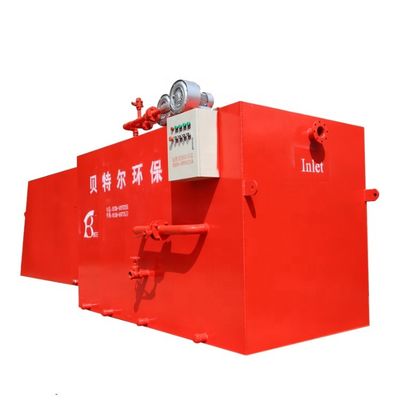

Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size

Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size

Large Image :  Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,689.00/pieces 1-1 pieces
Packaging Details: Container
Supply Ability: 30 Set/Sets per Month

Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining
Showroom Location: Egypt, France, Saudi Arabia, Spain, Kenya, UAE, South Africa, Japan Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Gearbox, Pressure Vessel, Pump, Engine, Motor, PLC
Weight: 3000KG Power: 0.75-11.5KW
Warranty: 1 Year Productivity: 2000L/Hour
Weight (KG): 3000 Kg Product Name: Mbr Sewage Treatment Device
Brand: BETTER Material: Carbon Steel/Stainless Steel
Model: MBR Color: Customized Color
After-sales Service Provided: Video Technical Support\Online Support Size: 1050x525mm
Application: Household/Industral MOQ: 1set
Port: Qingdao

Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 0
I .What is the MBR
Membrane Bioreactor (MBR) is a kind of advanced technology developed since the end of 20th century which realized the efficient combination of membrane separation technology with biological technology. The membrane separation technology replaces the traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be zero. Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it can be reused without the third level treatment. Due to the high security and economic and effective water, it greatly expands the scope of application of waste water recycling.
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 1
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 2
2. Technological Process
Sewage → Grille → Regulating pond → MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet water SS <1mg/L.
4. Membrane area: 8m2, advised gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 3
Model
WSZ 0.5
WSZ 5
WSZ 20
WSZ 30
Capacity(m3/h)
0.5
5
20
30
Inlet water BOD5(mg/L)
150~400
Outlet water BOD5(mg/L)
20~60
Floor space(m2)
4.5
15
51
76
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 4
4.Features:
1. Because of the high-efficiency solid-liquid separation, it can efficiently remove the SS, colloidal material and dead microbe in the sewage, no need sedimentation tank, or filter device, nor other solid-liquid separation device.

2. The MBR can make the biomass in biological treatment unit maintain high concentration, thus highly improve the volume loading.Meanwhile, the high efficient membrane separation can shorten the HRT. The device is with a compact structure and small space occupation.

3. MBR can filter out bacteria, part of the harmful material such as virus, it can obviously save dosing disinfection dosage,greatly improve the quality of the output water and reduce the operating cost and widen the scope of application of water.

4. Due to the strong interception function of MBR, it can keep the microbe in the reactor to avoid the loss of all kinds of microbe groups, which is good for the growth of the bacteria (such as the nitrifying bacteria), at the same time, it can lengthen the residence time of difficult degradable macromolecule organics to improve the decomposition so as to make the metabolic system process smoothly. The system has a strong impact resistance and wide suitability.

5. It can realize the completely separation of HRT and SRT. By the extended aeration, it can consume the organics, it can theoretically achieve the effect of no excess sludge emissions, thus reduce the surplus sludge treatment costs significantly.

6. The unique mode of operation makes the membrane surface no blocking, and the cleaning interval time is long. The way to clean the membrane is easy, since the membrane module can be separately cleaned, thus, the maintenance is convenience and simple. The module design make the machine flexible, it is easy to expand the volume.
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 5
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 6

3.Scope Of Application

1) The standard and quantity of sewage upgrading and reconstruction project are raised.
2) New sewage treatment project MBBR, fluidized bed and biofilter process.
3) Reclaimed water reuse and biochemical treatment.
4) Nitrogen and phosphorus removal in river regulation.
5) Aquaculture to remove ammonia nitrogen, purification of water quality.
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 7
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 8
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 9
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 10
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 11
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 12
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 13
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 14
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 15
Package MBR Sewage Treatment Plant for Domestic Wastewater Treatment in 1050x525mm Size 16
1. Who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(62.00%),Southeast Asia(10.00%),South America(9.00%),Africa(8.00%),Mid East(3.00%),Eastern Asia(2.00%),Central America(2.00%),Southern Europe(2.00%),South Asia(2.00%).
There are total about 101-200 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Sewage Treatment Equipment/Waste Incinerator/Sludge Dewater Machine/Organic Waste Aerobic Compost Machine 4. Why should you buy from us not from other suppliers? We have the strong ability of environmental protection equipment manufacture and design. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French
