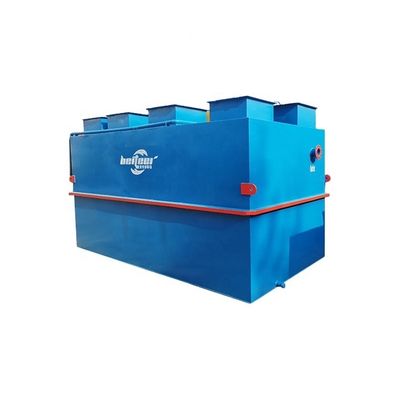

High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment

High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment

Large Image :  High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment

Product Details:
Place of Origin: Shandong, China
Brand Name: BETTER
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,699.00/pieces 2-2 pieces
Packaging Details: Seaworthy packing-- garbage incinerator,poultry incinerator,mini waste incinerator
Supply Ability: 20 Set/Sets per Month

High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Egypt, Canada, Italy, France, Germany, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Colombia, Romania, Australia Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2024
Warranty Of Core Components: 1 Year Core Components: Gearbox, Pressure Vessel, Pump, Motor, PLC
Material: Seaworthy Packing Weight: 1000kg
Size: Different As Each Model Power: Different As Each Model
Warranty: 1 Year Productivity: 0.5-30t/h
Weight (KG): 1000 Kg Product Name: Water Treatment System
Type: Automatic Usage: Water Treament
Capacity: 3000L/H Function: Producing Fresh Water
Color: White/Blue/Black Shape: Rectangle
Key Words: Sewage Treatment System Length: Orders Requirement
Advantage: 24 Hours Automatic Running

Product Description
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 0
         Membrane Bioreactor (MBR) is a kind of advanced technology developed since the end of 20th century which realized the efficient combination of membrane separation technology with biological technology. The membrane separation technology replaces the traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be zero. Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it can be reused without the third level treatment. Due to the high security and economic and effective water, it greatly expands the scope of application of waste water recycling.

Technical Parameter
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 1
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 2
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 3
Specification

1.The interception performance of the membrane totally intercepts microorganism in bioreactor, in this way, HRT (hydraulic retention time) and SRT (sludge age) is totally separated which leads to flexible control and operation.
2.MBR process omits the secondary setting tank and disinfection tank, reducing the occupied area.
3.The SRT is prolonged due to the blocking effect of the memberane, which creates microorganisms that are beneficial to slow proliferation.
4.Since the SRT is very long, the bioreactor has played the role of "sludge nitrification tank", thereby significantly reducing the sludge output, the excess sludge output is very low, and the sludge treatment cost is low.
5.Reactor is processing under low sludge loading, long sludge age. The surplus sludge is relatively low and the zero sludge
discharge can be realized.
6.Membrance bioreactor is easy to integrate, easy to realize automatic control, and easy to operate and maintain.
Model
WSZ 0.5
WSZ 5
WSZ 20
WSZ 30
Capacity(m3/h)
0.5
5
20
30
Inlet water BOD5(mg/L)
150-400
Outlet water BOD5(mg/L)
20-60
Floor space(m2)
4.5
15
51
76
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 4
Function
MBR is a kind of new technology for waste water treatment by combining membrane separation technique with activated sludge method. It can be used for municipal sewage and industrial waste water treatment and substitute for secondary sedimentation tank in removing suspended particles, so as to increase nitrogen removal rate and organics degradation rate.
Packing & Delivery
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 5
Company Profile
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 6
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 7
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 8
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 9
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 10
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 11
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 12
High Capacity 3000L/H Water Treatment System for Sewage Separation and Treatment 13
FAQ
Q:Are you a factory or trading company?
A: We are a direct factory, we have rich experiences for manufacturing waste treatment plants for more than 14 years.
Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% paid for deposit by T/T before production, 70% balance to be paid by TT before shipment.
Q:What is the delivery time?
A: It would largely depend on the quantity of order and the item you want.. Generally speaking, the delivery time will be within 4 to 6 weeks.
Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
