Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining

Certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
China Shandong Better Environmental Protection Technology Co., Ltd certification
I'm Online Chat Now

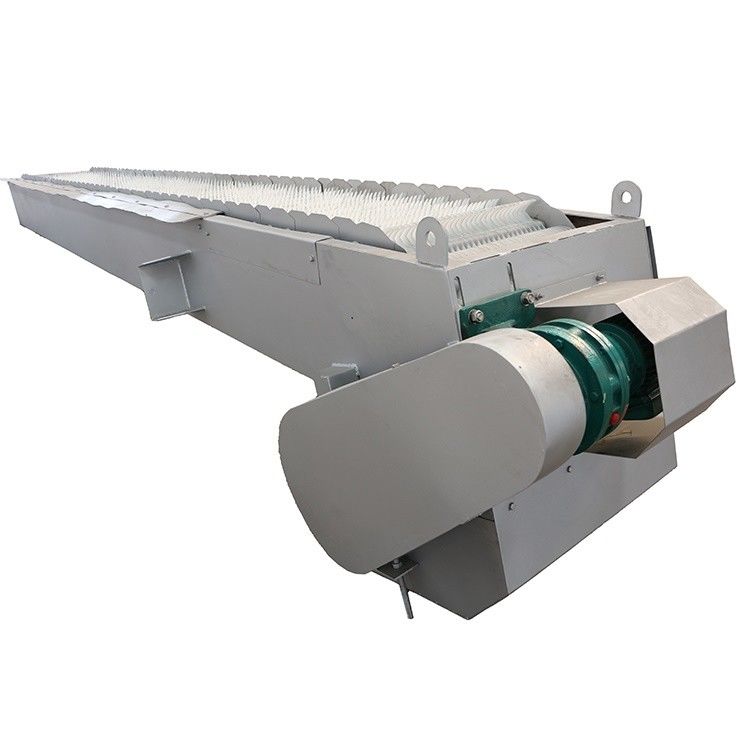

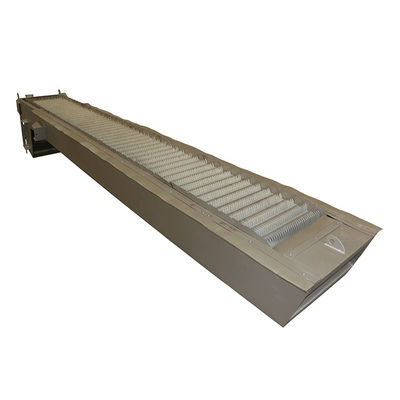

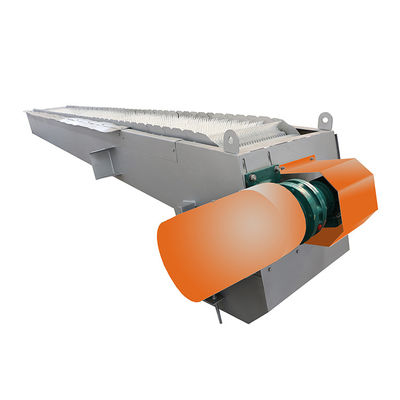

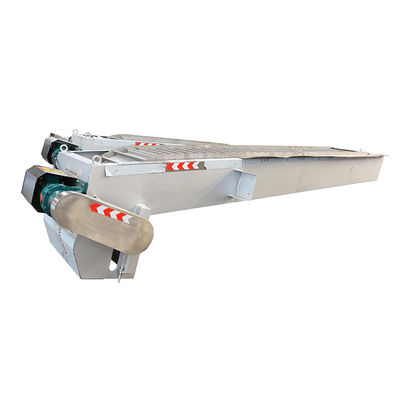

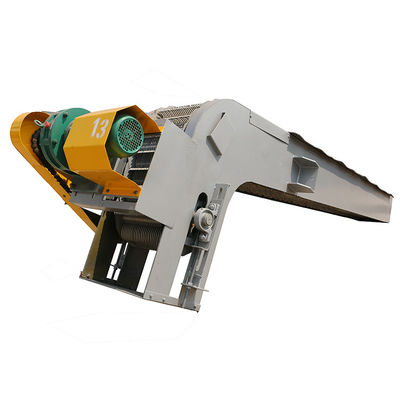

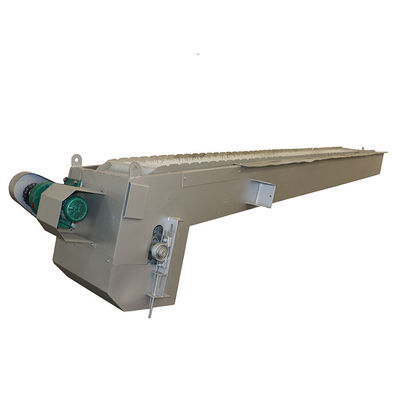

Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining

Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining

Large Image :  Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining

Product Details:
Place of Origin: Shandong, China
Brand Name: Better
Certification: ISO9001/BV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6,999.00/sets 1-4 sets
Packaging Details: Seaworthy packing or customized
Supply Ability: 20 Set/Sets per Month

Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining

Description
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: Germany, Peru, Indonesia, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Ukraine, Malaysia Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Gear
Material: Stainless Steel, Stainless Steel/Carbon Steel Weight: Customized
Size: Customized Power: 0.75kw
Warranty: 1 Year Productivity: 20set/month
Weight (KG): 880 Kg After-sales Service Provided: Online Support
Color: Silver Thickness: 5MM
Angle Of Inclination: 60-80 Material Of Teeth: Stainless Steel Or Nylon
Grille Clearance: 1-60mm Discharge Height: Customized
Name: Shandong Better Filter Bar Screen For Poultry Wastewater Treatment Port: QINGDAO PORT

Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 0
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 1
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 2
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 3
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 4
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 5
Working principle

Introduction

Self-cleaning screen waste remover is
composed of main frame, driving device, tooth harrow and transmission chains. Teeth with ABS, nylon 6, nylon 1010 or stainless
steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the top guided by rail andwheel. And brush will clean the residue on teeth.
It is installed at water inlet of secondary grill and other water intake units where no large particles are in water. It is also
can be used for industrial and municipal sewage of industries such as paper mill, textile, leather, wine and sugar making, fishingetc.
Chain rotor multi teeth screen waste remover is developed on the basis of advance technology from similar products both at home
and abroad. Several teeth (4-8 PCS) are uniformly placed on chains with certain space, it moves from back of grill to front so as
to push waste to discharging pole along preventing board where waste can be moved by transferring device or presser.
It is suitable for usage at premier and secondary fence of water inlet of water intake units.
Advantages
1) Long lifetime
2) Totally enclosed operation
3) Suitable for treating infectious waste
4) Avoid secondary pollution
5) Simple operation
Application
1) Textile and Dyeing Industries
2)Chemical Industries
3) Leather Wastewater, Tannery
4) Paper Mill and Municipal Wastewater
Installation Instructions
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 6
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 7
Using site
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 8
Customer Photos
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 9
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 10
ABOUT US
Wastewater Screen Stainless Steel Mechanical Fine Bar Screen For Energy Mining 11
Shandong Better Environmental Protection Technology Co., Ltd,
is the largest environmental protection machinery manufacturer in Shandong province,with over 11 years experience and hard work of our employees,we won the National Patents for our machines and customers all over the world.
We always put quality as the first consideration.
For any further information, feel free to contact Rachel!
